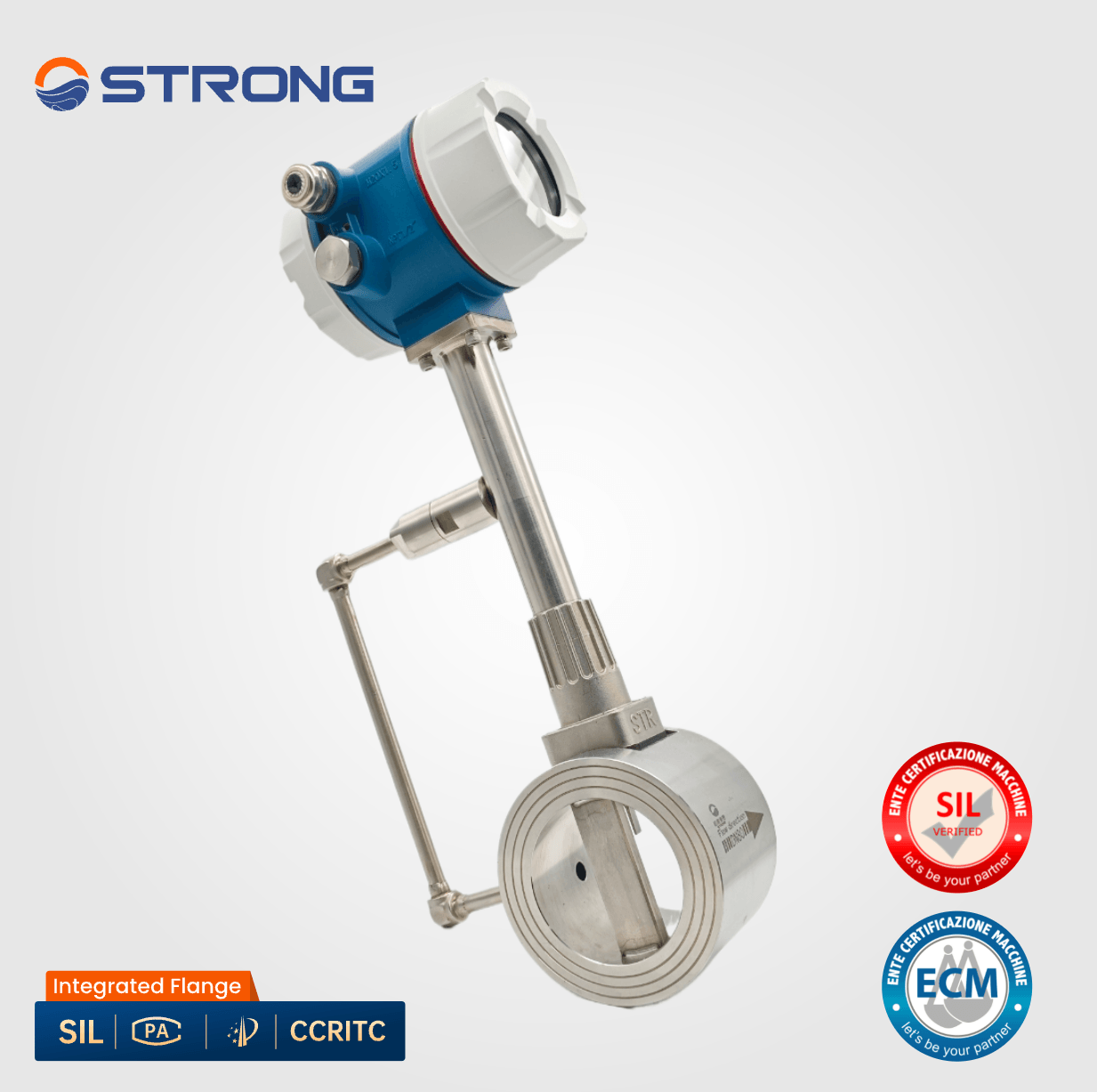

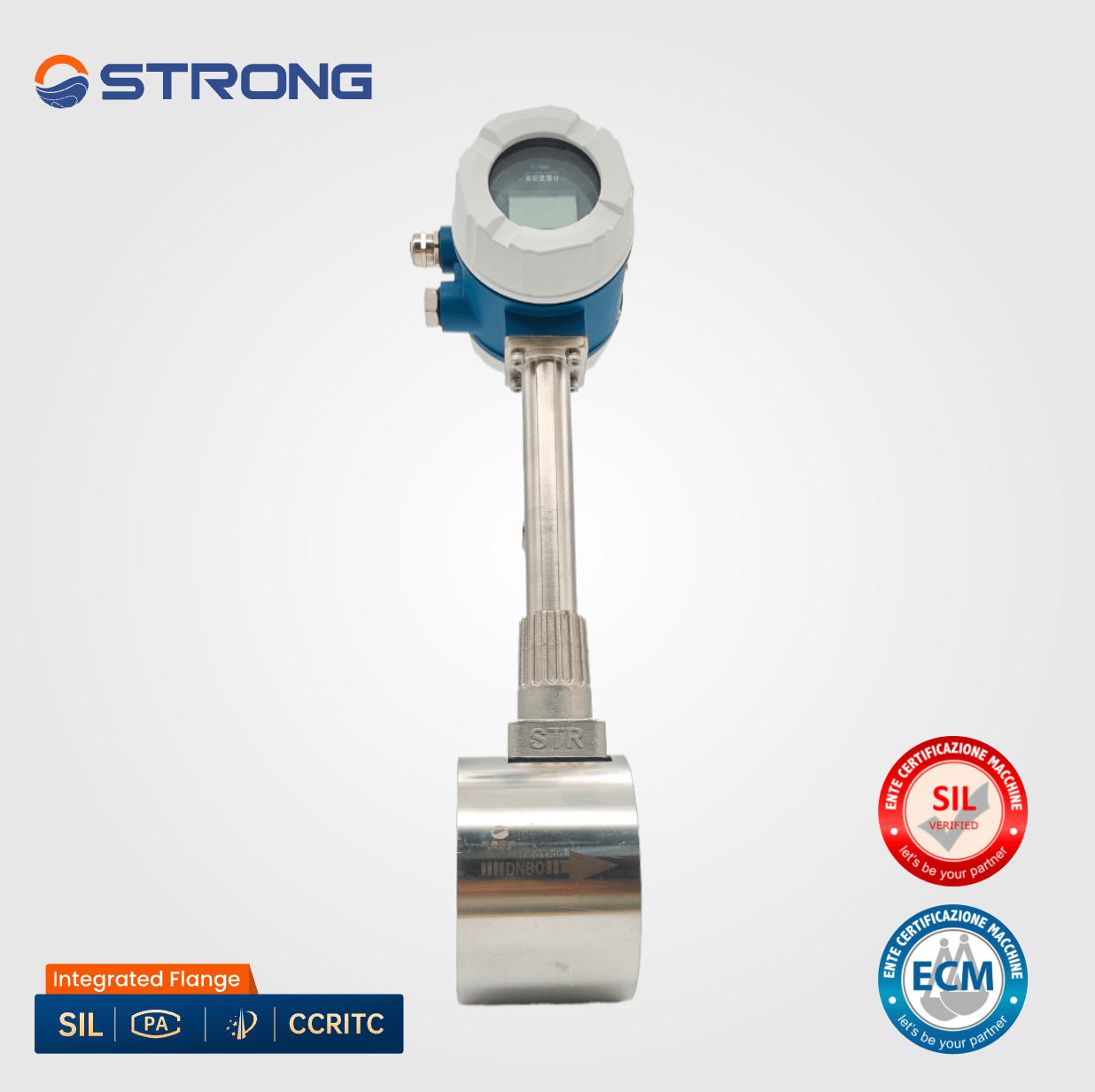

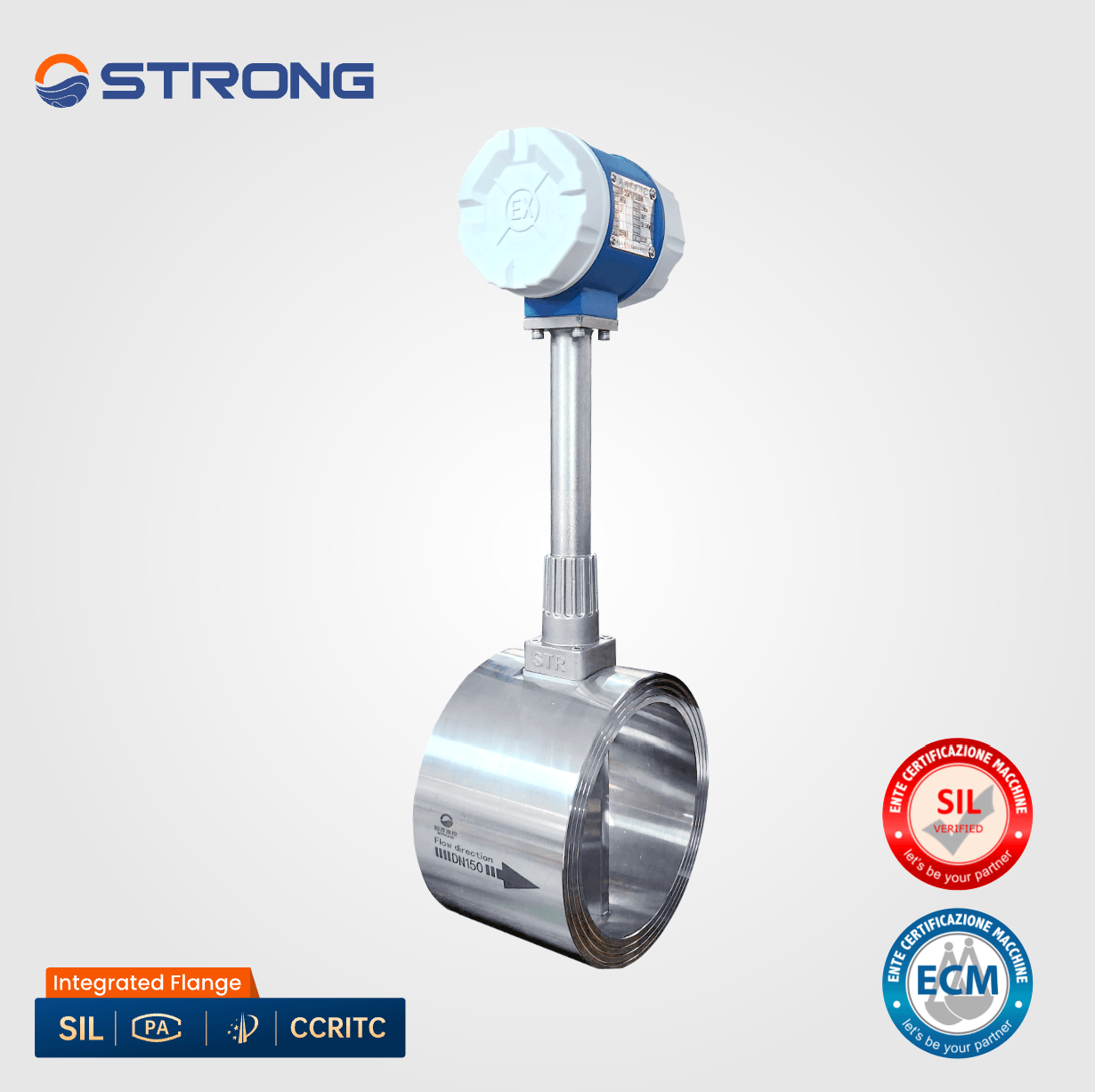

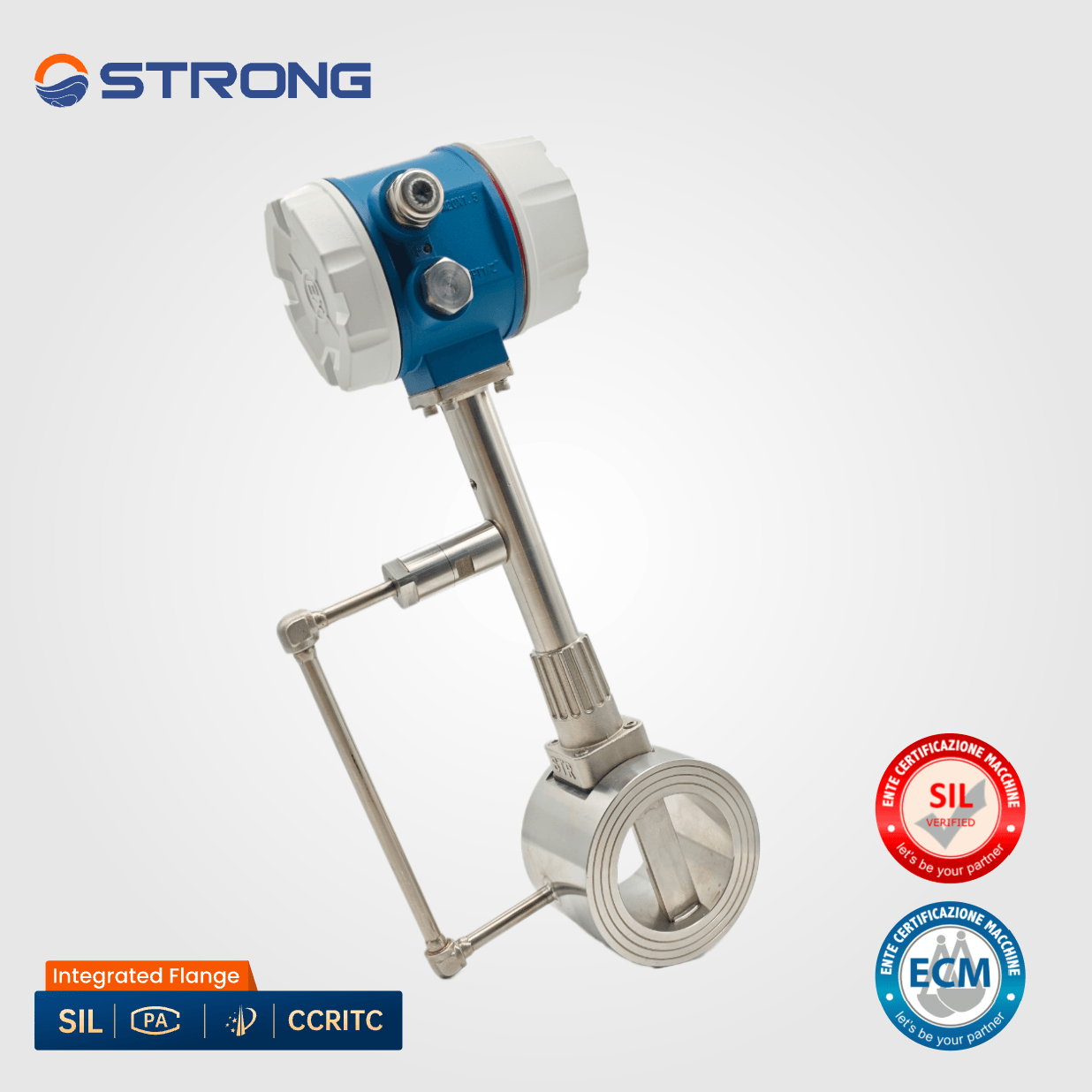

This temperature pressure compensation vortex flowmeter is a core measuring device designed specifically for compact engineering and cost optimization scenarios. It is equipped with an integrated temperature and pressure compensation module, which allows real-time collection of medium temperature and pressure data without the need for separate temperature and pressure measurement instruments. Based on dynamic parameters, it automatically completes density compensation and directly outputs accurate mass flow data, effectively solving the problem of volume flow measurement errors caused by pressure and temperature fluctuations. It has significant advantages in the measurement of easily compressible media such as steam and gas.

Core strengths

Integrated integration, more efficient installation

Integrating triple measurement and compensation functions of flow, temperature, and pressure, with a compact structure and small size, it greatly saves on-site installation space and pipeline layout costs. Flange clamping connection design, compatible with mainstream diameters of DN25-DN300, easy to install, suitable for new and old engineering renovations, especially suitable for project scenarios with limited pipeline space and tight schedules.

Accurate and stable, adaptable to multiple media

Equipped with high-precision sensors and intelligent algorithms, it can stably measure various media such as saturated steam, superheated steam, compressed air, nitrogen, industrial gases, and water. Through real-time compensation, even if the operating conditions fluctuate (such as sudden changes in steam pressure or gas temperature fluctuations), the measurement error of mass flow rate can be controlled within ± 1.0%, and the data is accurate and reliable.

High cost-effectiveness, suitable for economical projects

Integrated design reduces the cost of supporting instruments, pipelines, and construction, and lowers the difficulty of maintenance and manpower investment in the later stage. In projects with limited budget and low installation complexity requirements, high-precision measurement can be achieved with lower investment, balancing performance and economy.

Applicable industries and typical scenarios

Thermal power/heating industry

Scenario: End metering of steam heating pipelines in industrial parks and residential areas, internal boiler steam flow accounting in enterprises, and monitoring of hot water/steam flow in small thermal power stations.

Value: Compact design suitable for small equipment rooms, integrated compensation ensures accurate steam metering, and helps enterprises achieve refined energy consumption management and cost sharing.

Light Industry Manufacturing Industry

Scenario: Steam heating and process water metering in textile printing and dyeing factories, white water and steam flow monitoring in paper mills, compressed air and clean gas consumption accounting in food and beverage factories.

Value: Installation does not take up space, adapts to compact layout of production lines, stably measures multiple media, and meets the real-time and accurate requirements of production processes for flow data.

Chemical/Fine Chemical Industry (Conventional Operating Conditions)

Scenario: Measurement of inert gas (nitrogen) transportation in small and medium-sized chemical enterprises, monitoring of low-pressure steam process pipelines, measurement of wastewater and cooling water flow in environmental protection equipment.

Value: Meet the measurement needs under normal working conditions, reduce equipment investment and maintenance costs through integrated design, and adapt to long-term operation of chemical sites through complete industrial protection and stability design.

Construction/HVAC industry

Scenario: Measurement of central air conditioning chilled water/cooling water systems in commercial complexes, hospitals, office buildings, etc., and monitoring of steam heating end flow.

Value: Adapt to limited spaces between building equipment, integrate installation to reduce system complexity, and assist in energy consumption analysis and energy-saving operation of HVAC systems.

Environmental protection/energy conservation monitoring field

Scenario: Compressed air aeration flow monitoring in industrial wastewater treatment stations, flow measurement of biogas and biogas (low concentration gas), and collection of multi-media flow data in enterprise energy management projects.

Value: Strong adaptability to multiple media, integrated compensation improves measurement accuracy, helps environmental protection enterprises accurately calculate pollution discharge and energy consumption, and meets energy-saving monitoring standards.

summary

This temperature and pressure compensation vortex flowmeter focuses on integrated integration, compact installation, precise compensation, and high cost-effectiveness, accurately covering the compact engineering and economic project needs of industries such as thermal power, light industry, conventional chemical, HVAC, and environmental protection. Whether it is steam, gas or water medium, high-quality flow measurement can be achieved at low cost in a limited space, providing reliable data support for enterprise production and operation, energy consumption management and cost control.
