High Accuracy Industrial Flow Meter for Liquid Gas Water Measurement

Vortex Flowmeter/Differential Pressure Flowmeter/Ultrasonic Flowmeter/Thermal Mass Flowmeter/Electromagnetic Flowmeter

HomeProductProduct
Write a review Report
Manufacturer
4800m²
R&D Team
20+
Laboratory
verification/calibration
Usage Scenarios
industrial use

Product Details

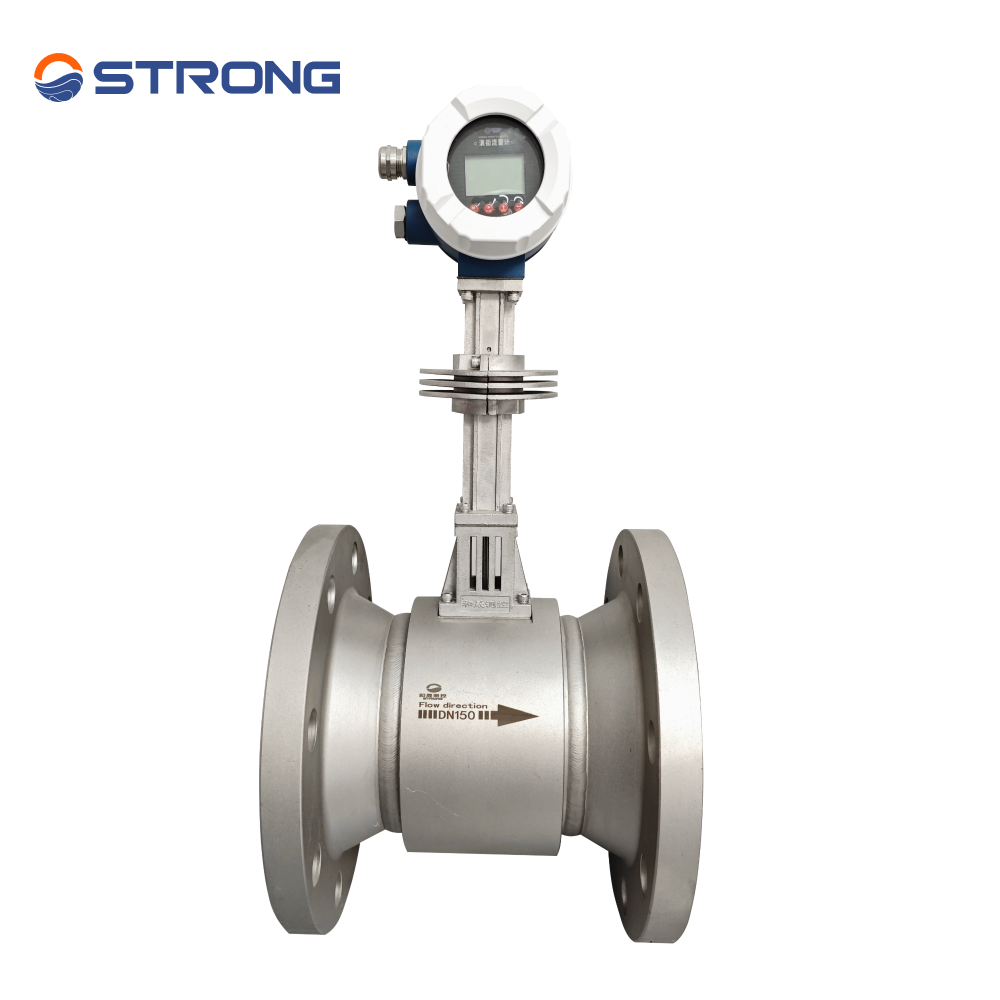

Vortex flow sensor is currently one of the mainstream flow meter products internationally, and it is also a key product of our company. This sensor has a simple structure with no moving parts, and its measurement accuracy is not affected by changes in fluid density, viscosity, temperature, and pressure. It is suitable for multiple media and working conditions, and the signal integration is convenient.

1980

Details

Nominal diameter
 20、25、32、40、50、65、80、100、125、150、200、250、300、 350、400、450、500
Maximum working pressure (Mpa) 2.5
Operating temperature range (℃) -40～250 / -40～350 / -40～400
Fluid conditions single-phase fluid
power supply +24VDC, +12VDC (sensor) +24VDC (transmitter)
output signal Sensor: Square wave low level <0.5V, high level ≥5V, Rfz≥500 Ω.
Transmitter: Proportional to flow rate, 4~20mA standard signal, Rfz<250 Ω
environmental conditions Temperature (-40~55℃), relative humidity (5%~90%)
atmospheric pressure (86~106Kpa)
Flow rangeability 1:10~1:20 (air at 20℃ and 101325Pa) 1:10~1:20 (normal temperature water)
Ontology material 1Gr18Ni9Ti
accuracy class ±1.0 ±1.5
pressure loss coefficient Cd≤2.4
