Product Details

Radar level sensor is based on the FMCW principle, used to accurately measure parameters of various media, with stable operation under complex conditions and flexible installation.

Key features of radar level sensor : 76-81GHz high frequency (shorter wavelength, strong adaptability); lens antenna for stable performance in harsh environments; max range 120m, min blind zone 0.08m; reliable measurement in dusty/agitated conditions; supports 2-wire and 4-wire installation.

Radar Level Sensor is widely used for measuring liquids, slurries, viscous media (distance, level, volume, weight, open-channel flow) and solids (powders, granules, blocks), especially suitable for high-dust, high-temperature (+200°C) and solid measurement scenarios.

In summary, the 76-81GHz radar level sensor, with FMCW principle, high frequency and lens antenna, offers accurate measurement, strong adaptability and flexible installation, serving as a reliable solution for liquid/solid and harsh environment measurements.

Flange radar level sensor: Stainless steel house with superior Durability & corrosion ResistanceProfessional work shopSufficient stockRadar level sensors are widely used in industrial fields

Over 12 years of Production Experience
0

Details

1.Transmission frequency: 76GHz~81GHz

2.Measurement range: 15m; 35m; 85m；120m

3.Measurement accuracy: ± 2mm or customized

4.Measurement interval: fastest 100ms

5.Beam angle: 3 °/8 °/20 °

6.Use dielectric constant range ≥ 2

7.Power supply range: 18~28VDC, 220VAC

8.Communication method: MODBUS bus; HART

9.Signal output: 4~20mA or RS-485

10.Fault output: 3.6mA, 22mA, hold

11.On site operation/programming: 128 × 64 dot matrix display screen/4 buttons; Configurable upper computer setting software

12.Process temperature/humidity: T0: -40~85 ℃/humidity ≤ 95% RH; T1: -40~200 ℃; T2:-40~400℃； T3:-40~800℃ 13.Shell material: aluminum alloy, stainless steel

14.Process connection type: pipe thread/universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange 15.Process pressure: -0.1-2MPa 16.Product size: ≈ φ 100 * 240mm

17.Cable entrance: M20 * 1.5; 1/2NPT

18.Recommended cable: AWG18 or 0.75mm ²

19.Protection level: IP67/IP66

20.Explosion proof grade: Exia IICT6 Ga; Exdb IICT6 Gb； Extb IIIC T80℃Db

21.Installation method: thread, flange, bracket, chuck or gantry, etc

22.Net weight/gross weight: about 1.50kg~7.50kg

23.Packaging box size: 280 * 280 * 280mm

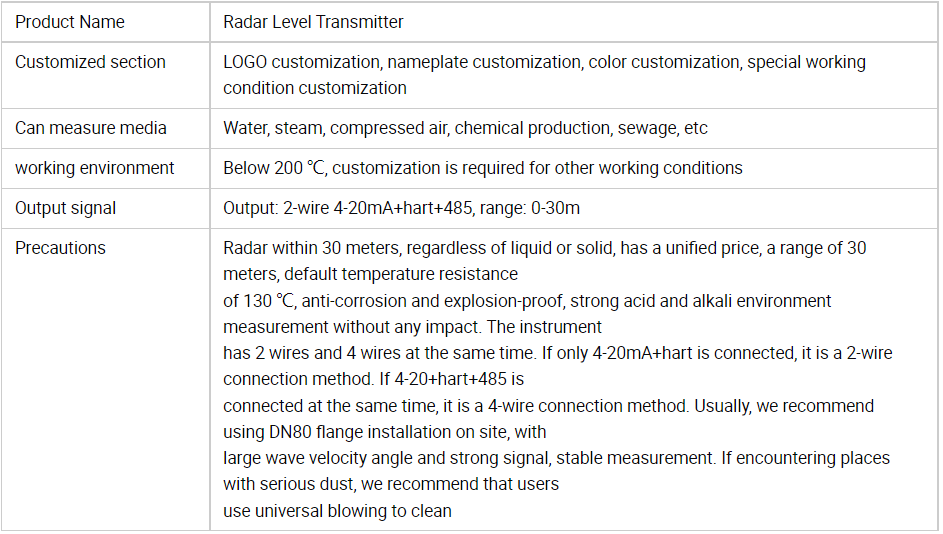

Details of the drawings
