Product Details

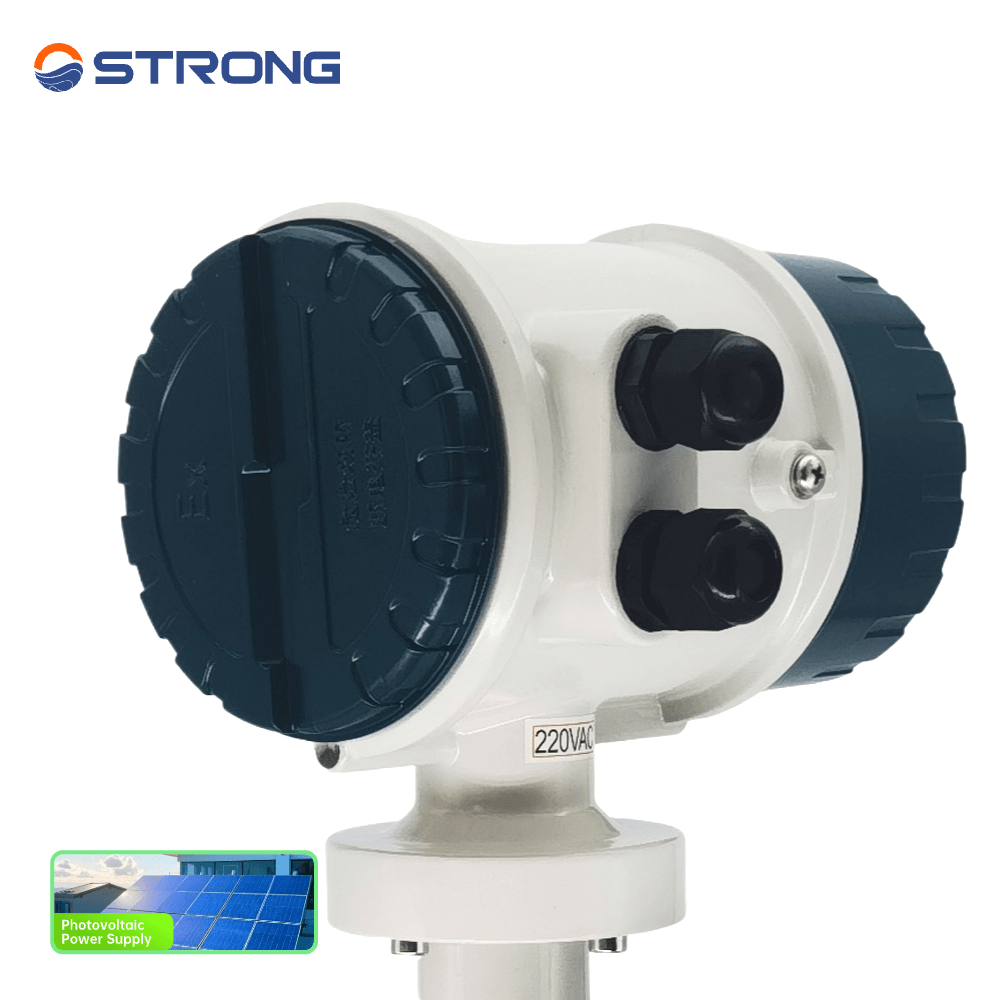

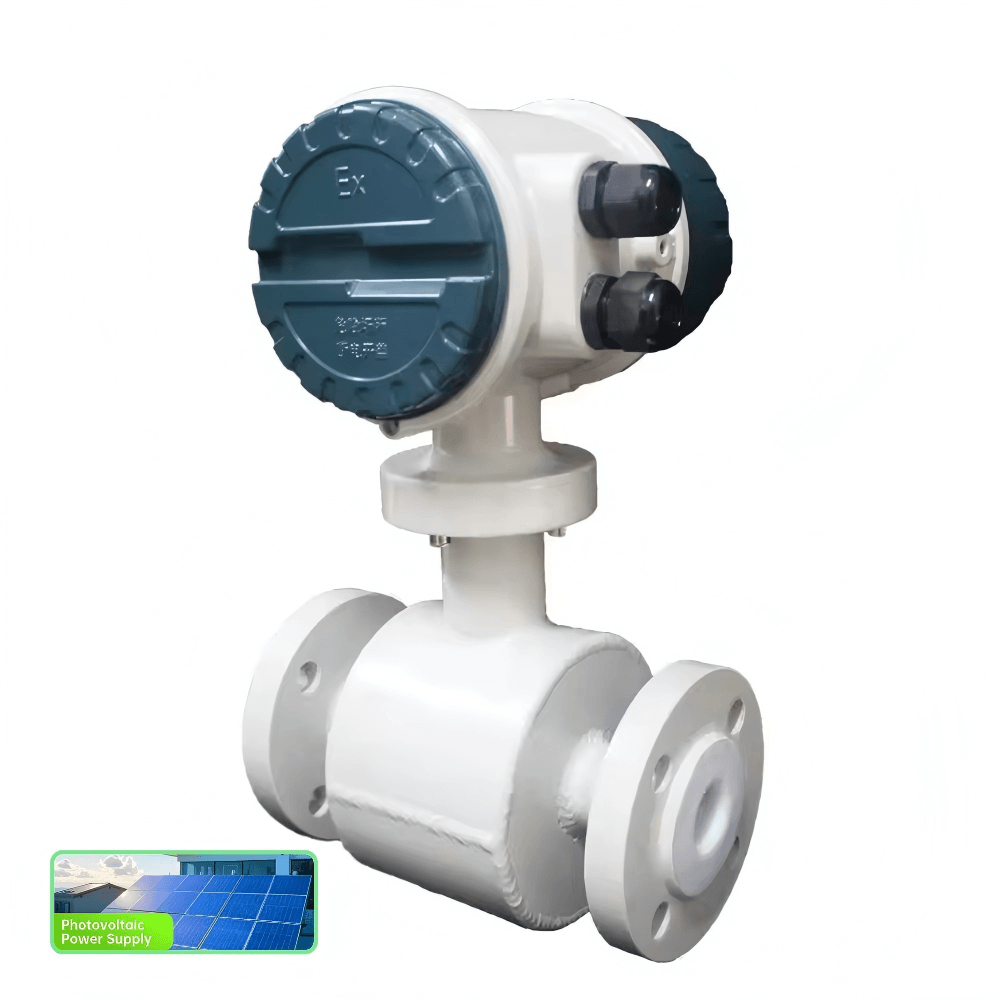

Electromagnetic Flow Meters operate under Faraday’s Law of Electromagnetic Induction to measure liquid velocity. The law states that a conductor moving through a magnetic field produces an electrical signal within the conductor, which is directly proportional to the velocity of the water moving through the field.With 12 years of steady accumulation and development in the industry, we have built a comprehensive and mature organizational system covering R&D, production, design and technical services. We are equipped with professional and experienced teams in each sector, who are committed to continuous innovation, optimized solutions and reliable product quality. Our integrated capabilities enable us to provide stable, efficient and customized support for global customers, meeting diverse and demanding application requirements in different working conditions.

The highly robust structure, allows burial installation or the use in flooded areas. A full on-site verification without process interruption can be carried out using the Field Verificator service tool. Thanks to this feature, electromagnetic flow meters are widely applied in various complex working conditions.

0

Details

1.Tested medium: Conductive liquid (tap water, river water, seawater, beer, beverages, chemical raw materials, mud, slurry, etc.)

2.Execution standard: Electromagnetic flow sensor "JB/T9248-2015"

3.Verification regulation: JJG1033-2007 Electromagnetic flowmeter

4.Pipeline diameter: DN3-3200 nominal pressure: 0.5, 1.0, 1.6, 2.5, 4.0, 6.3, 10Mpa

5.Temperature range: -20~150 ° C

6.Flow velocity range: 0.3~12m/s

7.Accuracy level: ± 0.5%, ± 1%

8.Conductivity: ≥ 20 μ s/cm (standard), ≥ 5 μ s/cm (customized)

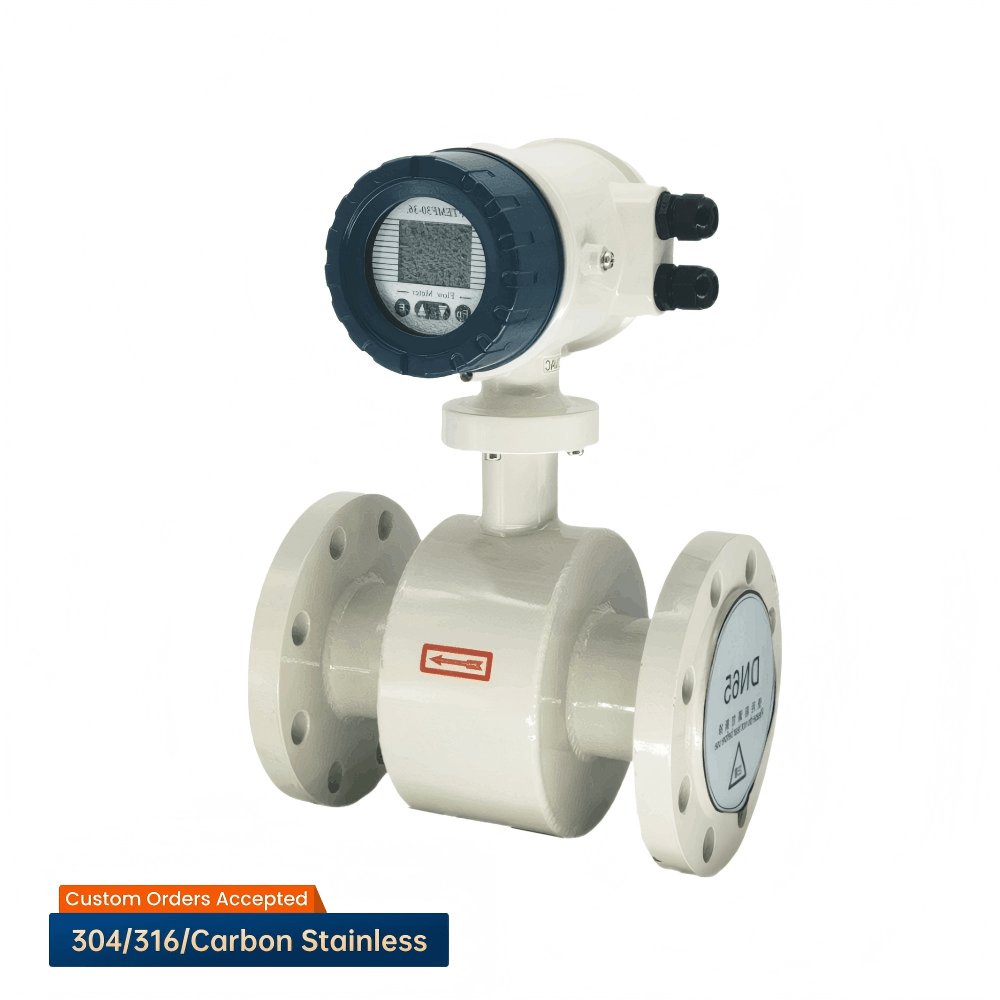

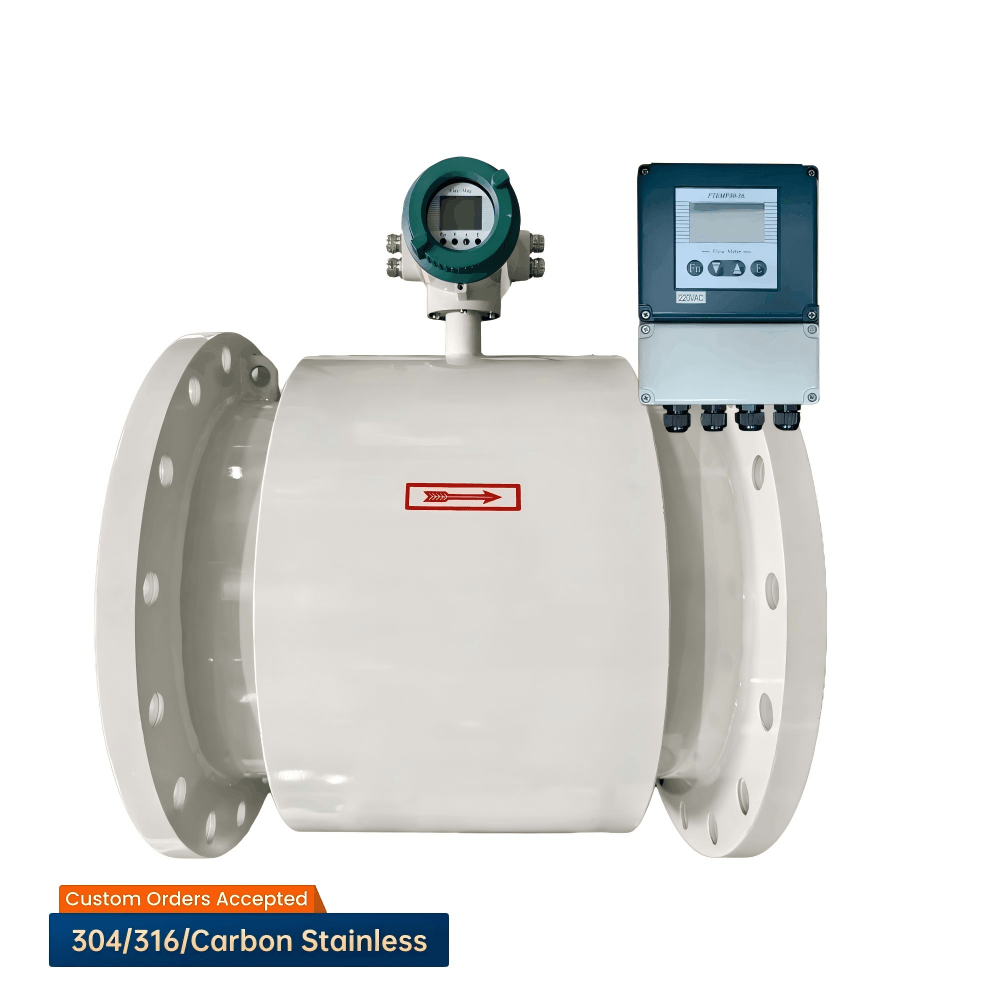

9.Structural form: integrated structure, split structure (with 5-meter standard cable), plug-in type

10.Number of electrodes: 4 electrodes (≤ DN500), 6 electrodes (≥ DN600)

11.Electrode materials: 316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum Iridium Alloy, Tungsten Carbide

12.Lining materials: chloroprene rubber, polytetrafluoroethylene PFA、 Polyurethane, perfluoroalkoxy, ceramics, etc

13.Body material: carbon steel, 304, 316L Power supply voltage: 220VAC, 24VDC, 3.6V Lithium battery power supply

14.Instrument power consumption:<15W Signal output: pulse, 4-20mA, HART protocol, Modbus protocol, relay output, GPRS wireless remote transmission

15.Installation form: flange connection, plug-in flange standard: GB/T9119-2010 (other standards can be customized)

16.Protection level: IP65, IP67, IP68

17.Explosion proof rating: non explosion proof, explosion proof Exd ib IIC T6 Gb
