Product Details

Thermal Mass flow meter is based on thermal measurement technology. It can measure the standard flow, mass flow, consumption, and gas temperature directly

0

Details

1. Measurement range: 0 (0.1)... 250 Nm/s

2. Accuracy level: ± (1.5% RD+0.3% FS) [1% RD accuracy optional]

3. Sampling rate:>20 sampling points/second

4. Medium: Non condensing gases such as compressed air, nitrogen, oxygen, carbon dioxide, etc

5. Reference conditions: 20 ° C, 1 bar (a) - ISO 1217 (editable)

6. Display: 2.8 "IPS ultra wide viewing angle LCD screen with capacitive touch

7. Data recording: 10000000 record points

8. Normal measurement: 18 .. 30 VDC，5W @ 24VDC

9. Output:  4-20mA output: standard flow rate/standard flow rate/temperature (configurable)

   Pulse output: Accumulated flow rate or alarm output under standard conditions

   Digital output: Modbus RTU (RS485) Wireless output: Bluetooth connection, Wi SUN wireless (optional), IOT-4G wireless (optional)

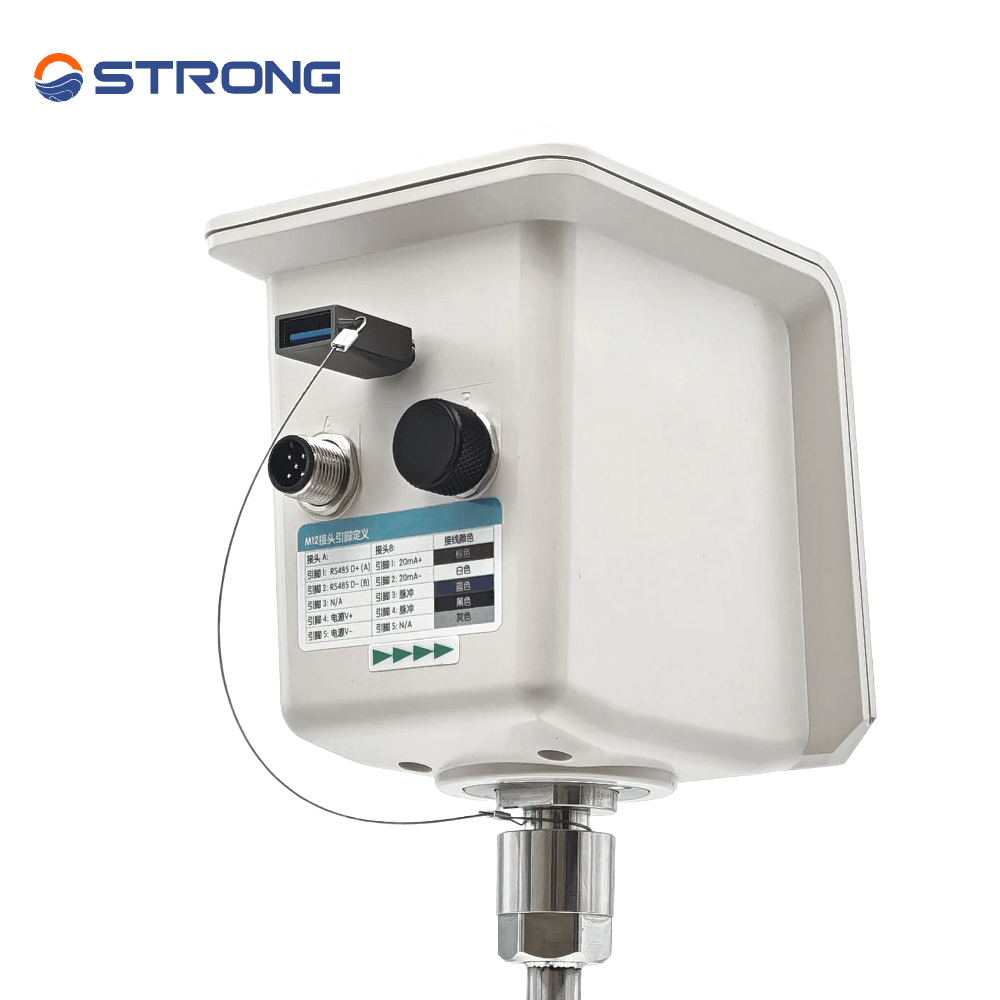

10. Connector: 2 × 5 pin M12, Female

11. Working temperature: -30 degrees Celsius .. +70 °C

12. Medium temperature: -40 .. +150 °C

13. Work pressure

Insertion type: 0 6.3 MPa (a) (>1.7 MPa. a requires a high-pressure installer)

Pipe section type: 0 1.7 MPa (a) (optional 4.0, 6.3 MPa. a)

14. Process connection: G1/2 "(ISO 228-1) (plug-in model)

15. Electromagnetic compatibility: Complies with IEC 61326-1

16. Material of probe/pipe section: Stainless steel SUS304 (standard) Stainless steel SUS316 (optional)

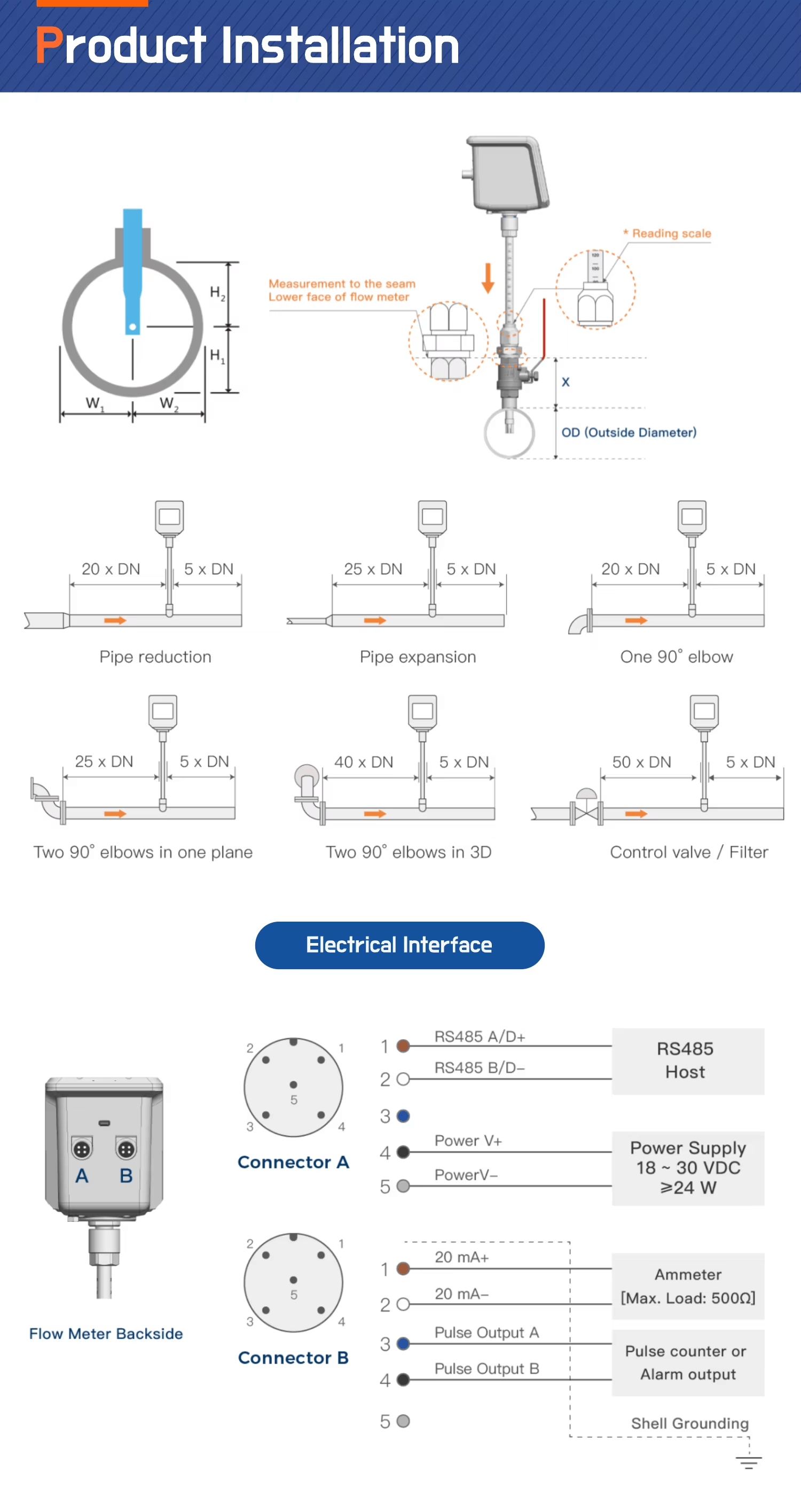

Details of the drawings

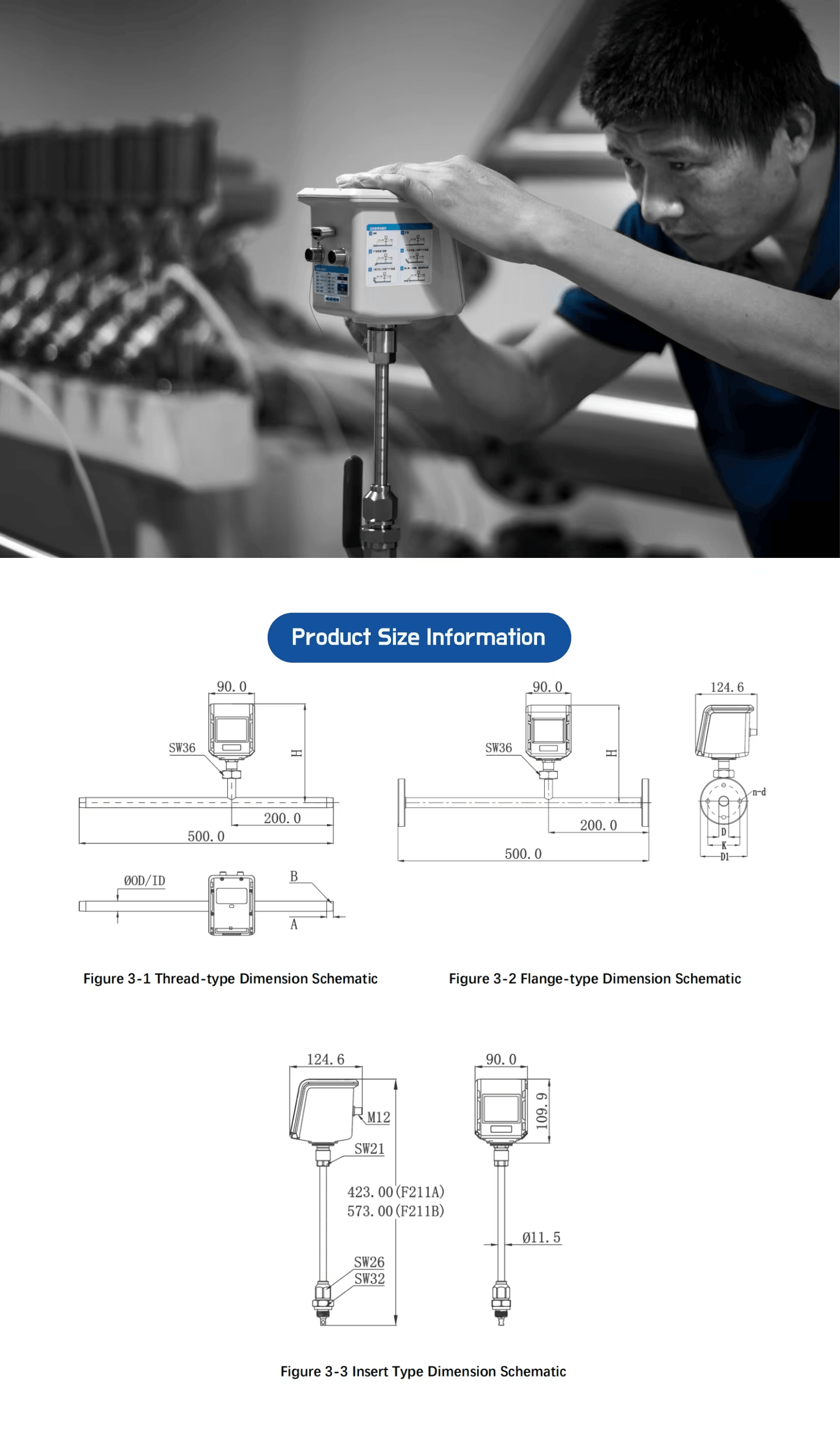

product structurer

product details
