Industrial Temperature Transmitter
Platinum resistance/armored platinum resistance/thermocouple
Manufacturer
4800m²R&D Team
20+Laboratory
verification/calibrationUsage Scenarios
industrial useProduct Details

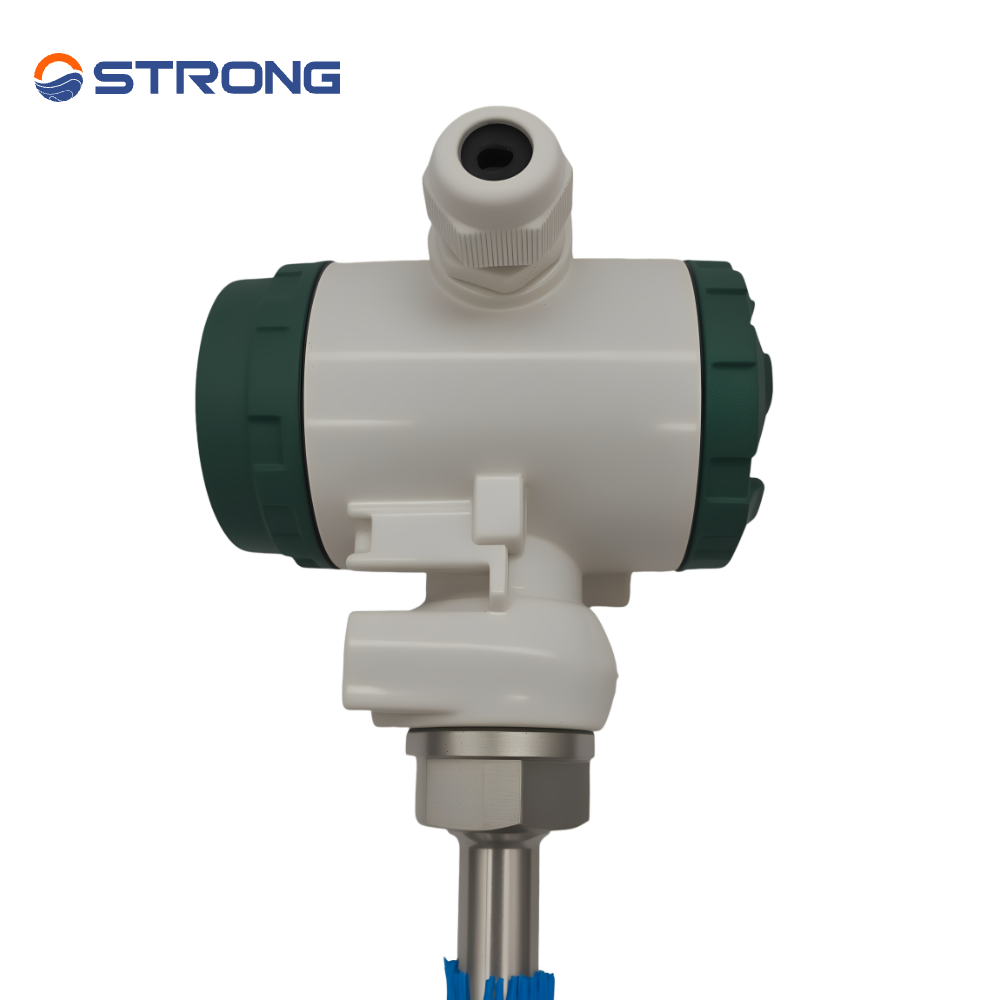

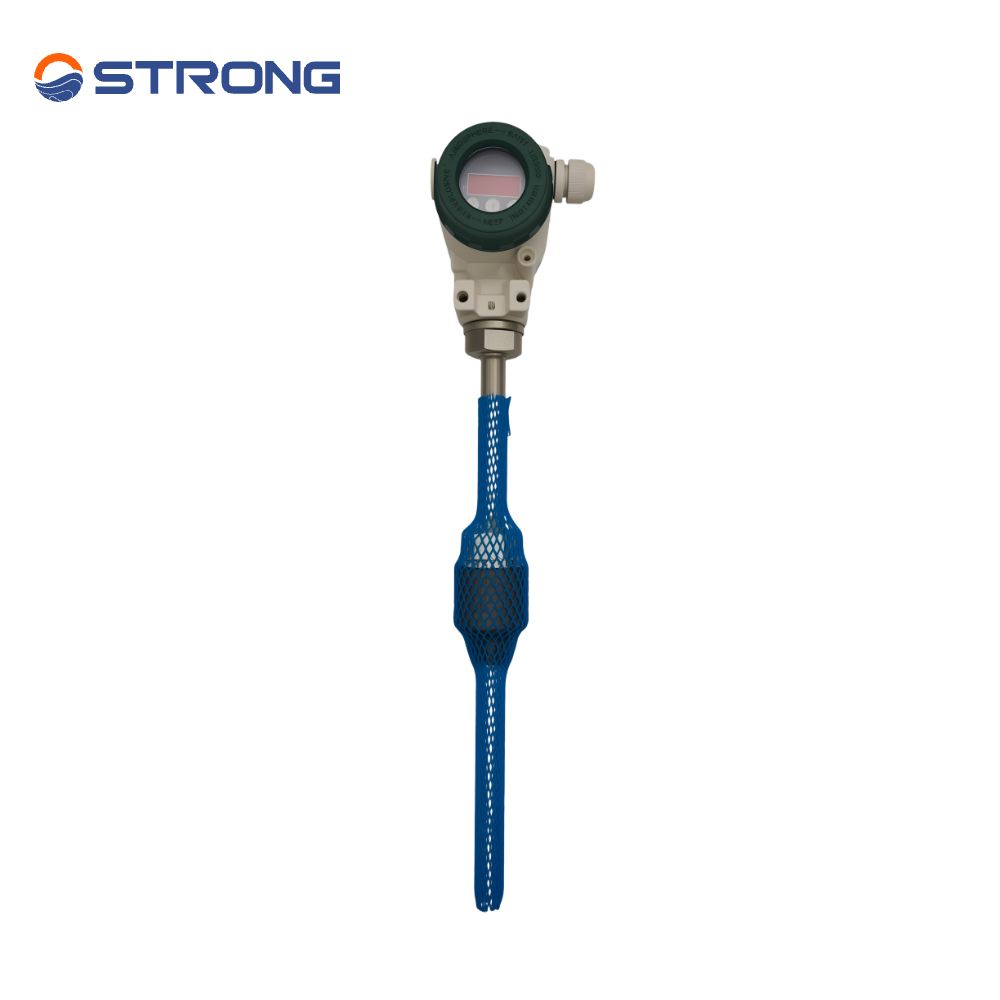

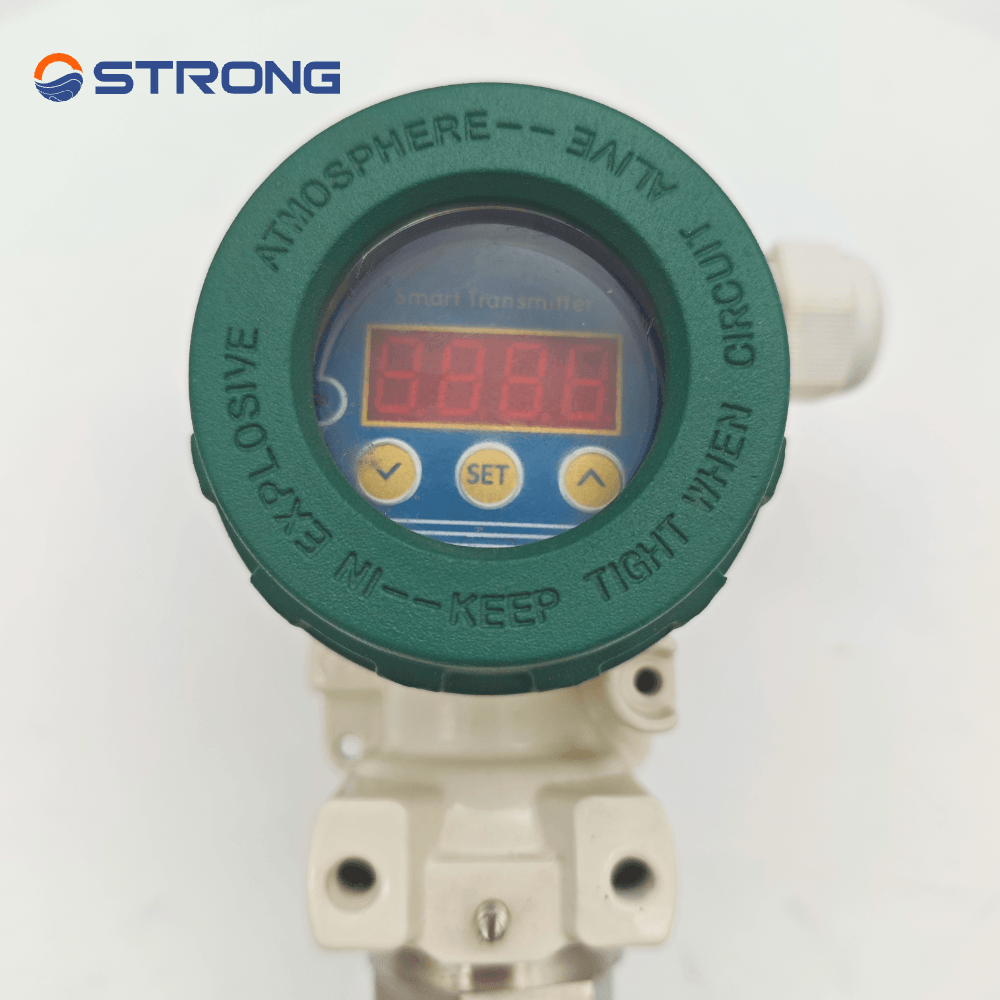

PT100 RTD Temperature Transmitter is engineered for demanding industrial environments, delivering uncompromising accuracy and long-term reliability. Built with a high-precision PT100 sensing element and a 304 stainless steel probe, it features a waterproof connector, corrosion-resistant sealing ring, and IP67-rated protection, effectively shielding against dust, moisture, and extreme temperatures. Equipped with an on-site digital display and standard 4-20mA/RS485 signal output, it seamlessly integrates with all major industrial control systems for easy installation and plug-and-play operation. With its rugged construction and consistent performance, it is the trusted temperature measurement solution for HVAC, chemical, water treatment, and industrial automation applications worldwide.
Details
1. The resistance at 0 ℃ is 100 Ω, and the resistance at 100 ℃ is 138.51 Ω.
2. Measurement range: -100~500 ℃.
3. Response time parameter:<3 seconds.
4. Minimum insertion depth: 15mm.

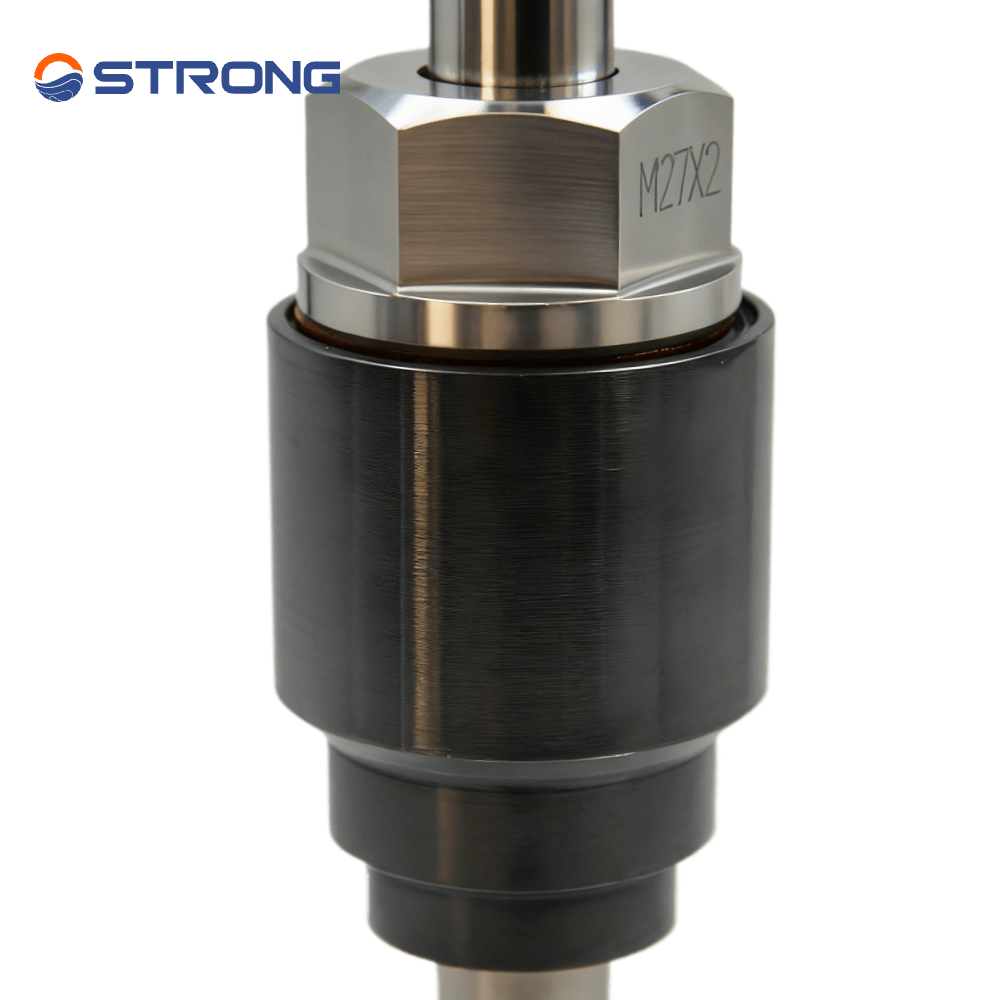

5. External dimensions: The temperature sensor housing material is 304 stainless steel, the base is made of carbon steel M27 * 2, M16 * 1.5
specifications, and the sensor lead is a three core heat-resistant shielded wire.
