Industrial pressure and differential pressure transmitters
Pressure Transmitters/Differential Pressure Transmitters
Manufacturer
4800m²R&D Team
20+Laboratory
verification/calibrationUsage Scenarios
industrial useProduct Details

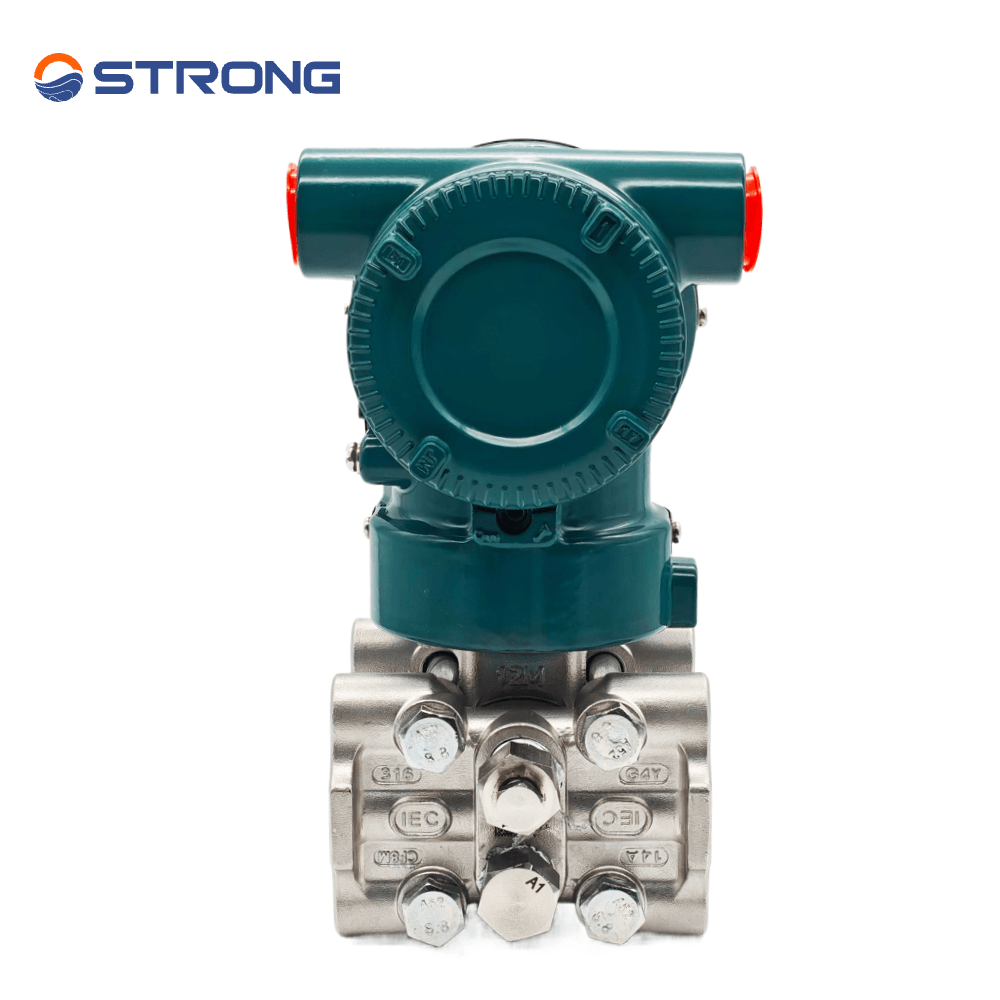

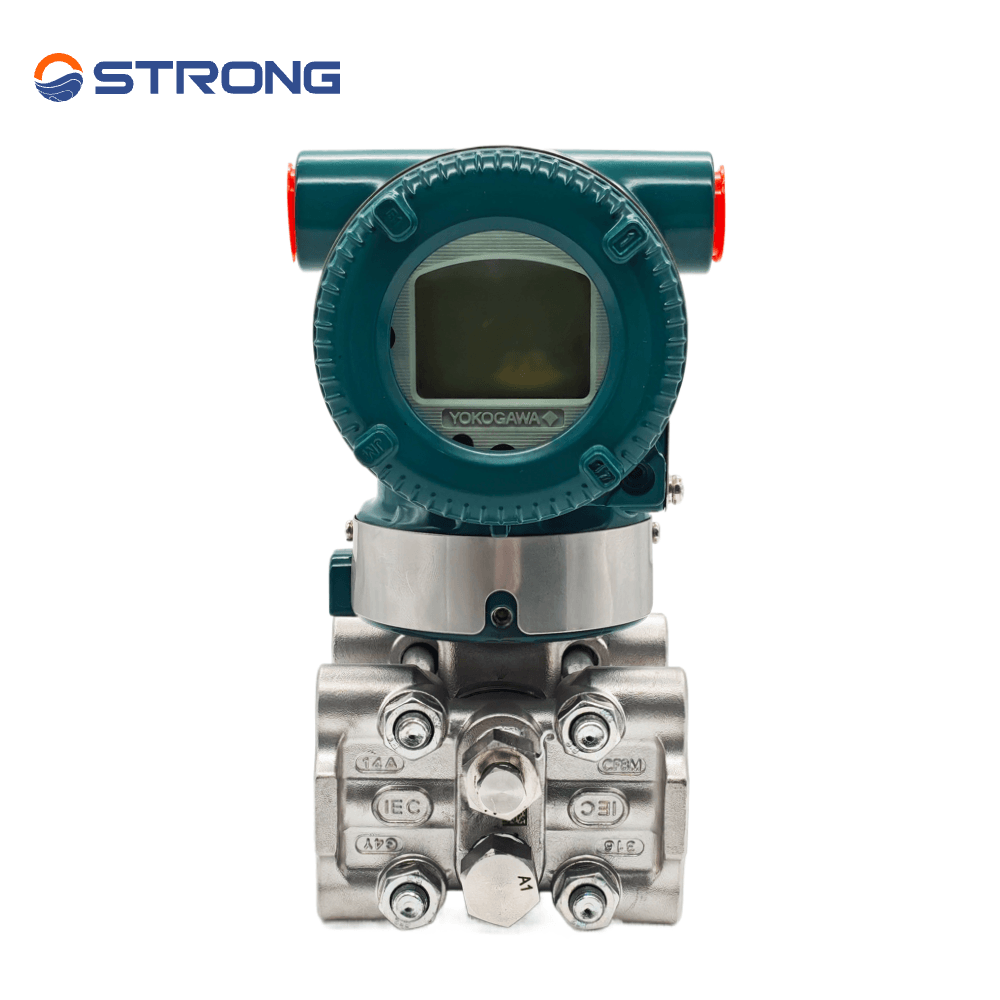

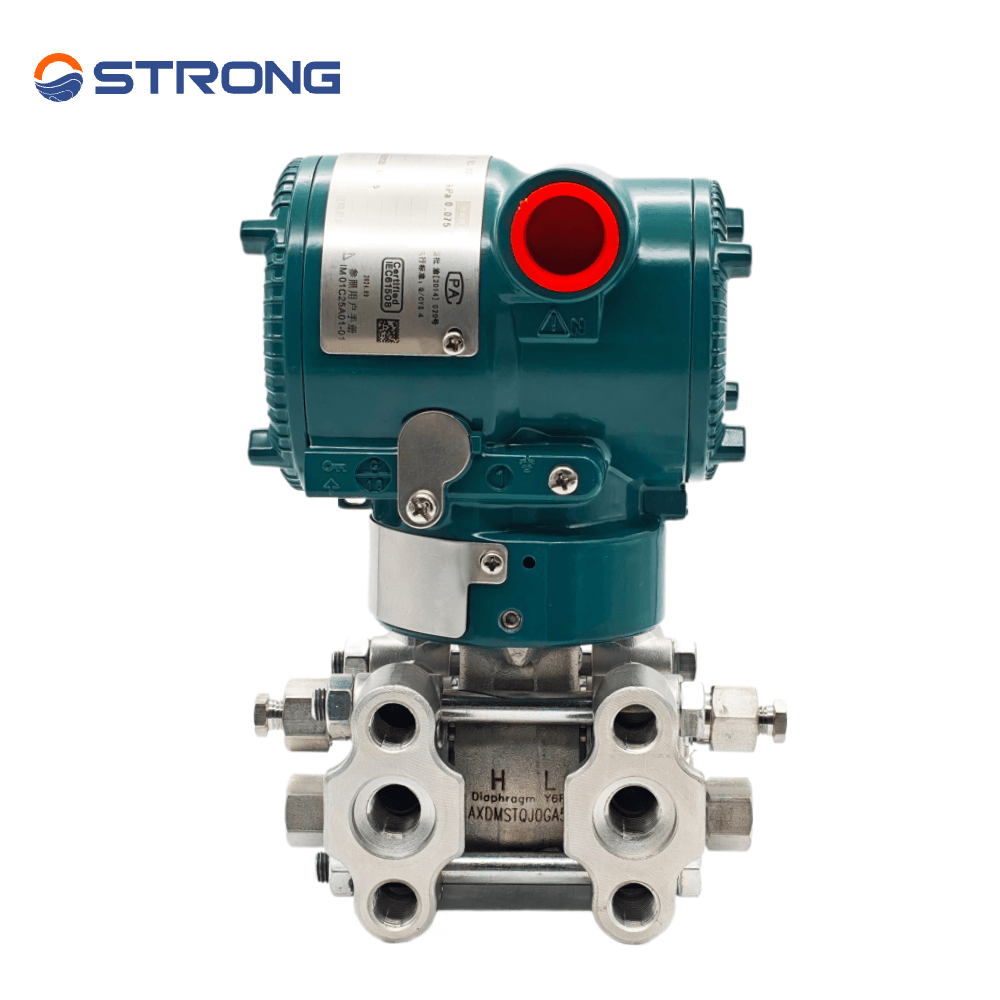

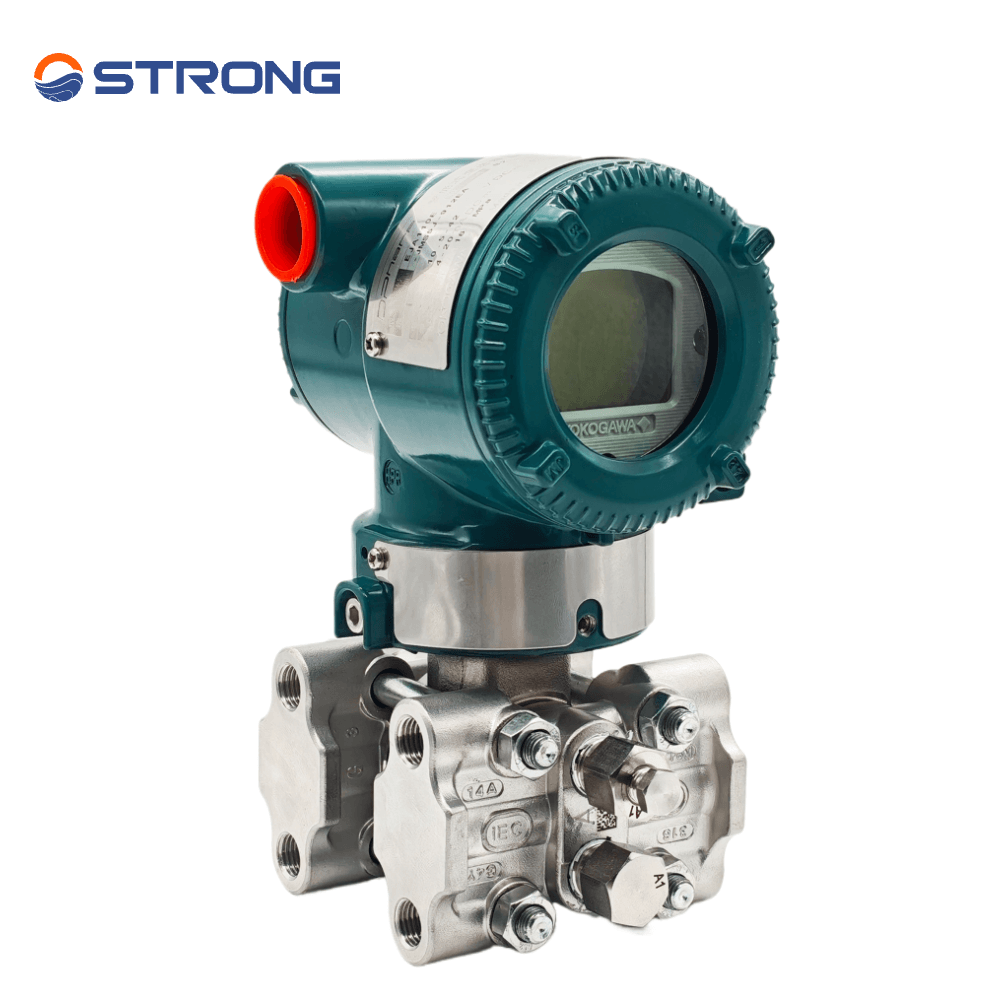

Differential pressure transmitter. Made of stainless steel, it can accurately measure industrial parameters such as differential pressure, pressure and liquid level. With stable performance and strong anti-interference, it is widely used in petroleum, chemical, power and other industries, serving as a core instrument for industrial automation measurement and control.
0Details
1. Measuring objects: pressure, liquid level, density, flow rate
2. Applicable media: liquid, gas, steam
3. Measuring range: 0.1kPa~50MPa (divided into four ranges of diaphragm capsules: A/B/C/D)
4. Basic accuracy: ±0.055%, high-performance model ±0.04%
5. Long-term stability: EJA530E ±0.1% URL/7 years; EJA510E ±0.2% URL/7 years
6. Response time: 90ms
7. Data refresh time: 45ms
8. Standard output: 4-20mA DC (with communication), 1-5V DC low power consumption, some models with pulse/status output
9. Communication protocols: BRAIN, HART5/HART7, FF fieldbus, PROFIBUS PA
10. Power supply voltage: 4-20mA type 10.5~42V DC; 1-5V type 9~28V DC, external load ≤600Ω at 24Vdc, communication requires ≥250Ω
11. Damping time: 0.00~100.00 seconds (software adjustable)
12. Zero adjustment accuracy: resolution up to 0.01% of the set range, balance valve must be opened before zero adjustment
13. Pressure tapping requirements: mark H/L for high and low pressure sides, pressure pipe inclination ≥1/10, steam measurement with condensation tank, low pressure side of micro-pressure measurement connected to atmosphere with windproof measures, adjustable interface spacing 51/54/57mm
14. Wetted materials (standard configuration): 316L stainless steel diaphragm + process connection, silicone oil filling fluid
15. Housing material (standard configuration): low-copper cast aluminum alloy (polyurethane anti-corrosion paint)
16. Protection class: IP66/IP67 (NEMA 4X)
17. Ambient temperature: conventional -40~85℃; with LCD display -30~80℃
18. Medium temperature: -40~120℃
19. Safety certification: SIL2 (standard)/SIL3 (redundant), supports domestic and foreign explosion-proof certifications (intrinsically safe Ex ia IIC T4 Ga, flameproof Ex d IIC T4~T6 Gb)

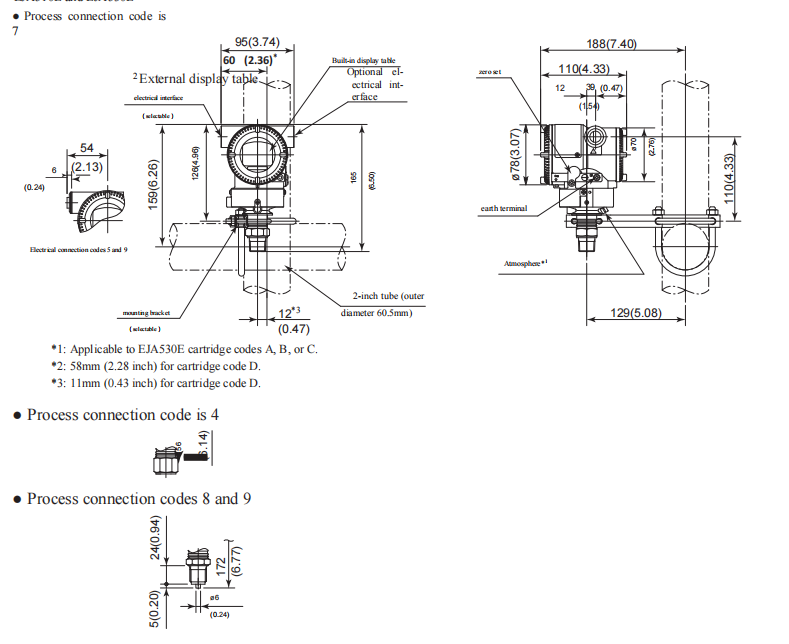

20. Installation adaptation: altitude ≤2000 meters, pollution degree 2, suitable for indoor/outdoor use, adapted to 50mm pipe installation, with piping/direct mounting type three-valve manifold
21. EMC standard: EN 61326-1 Class A, shielded twisted-pair wiring is recommended
