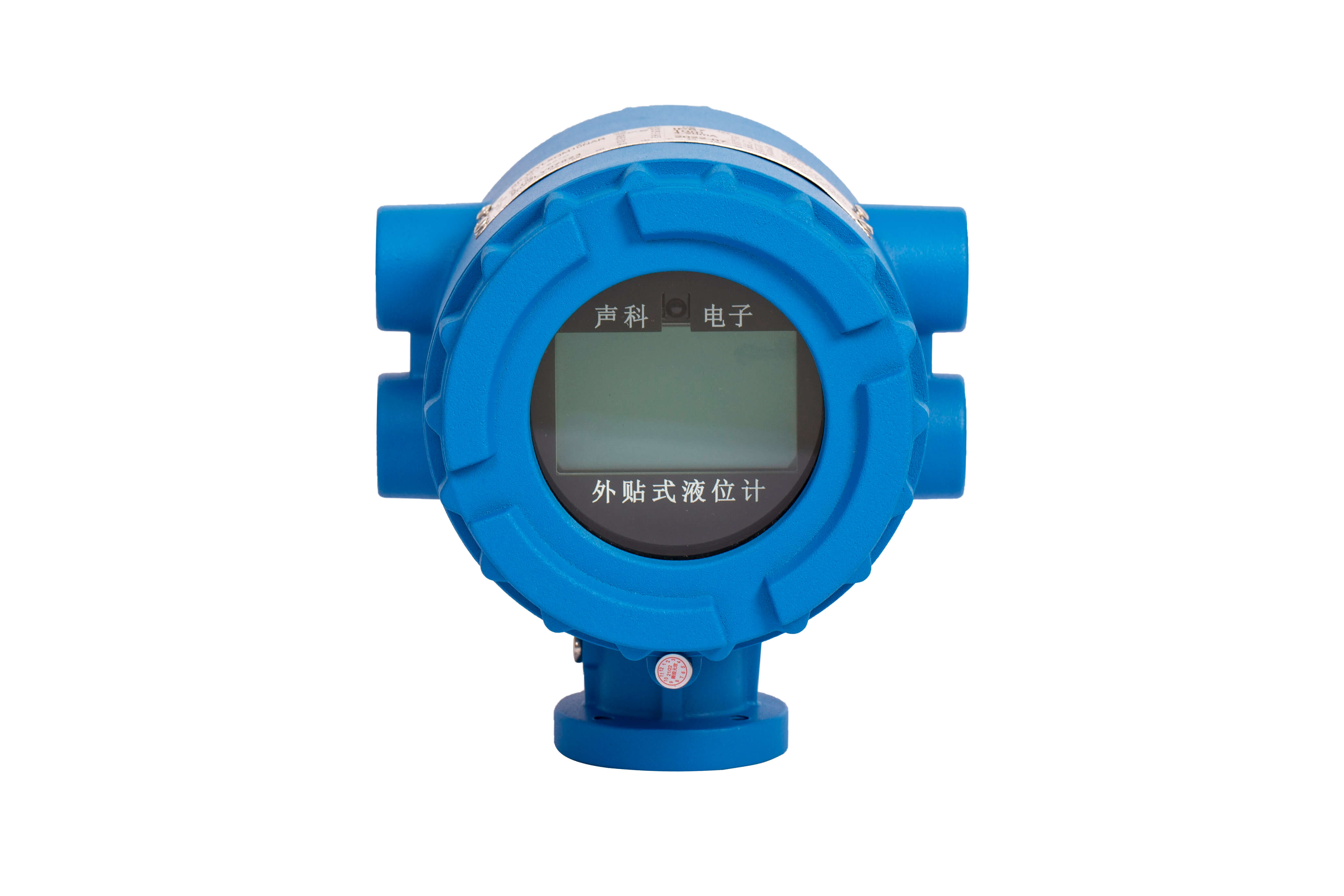

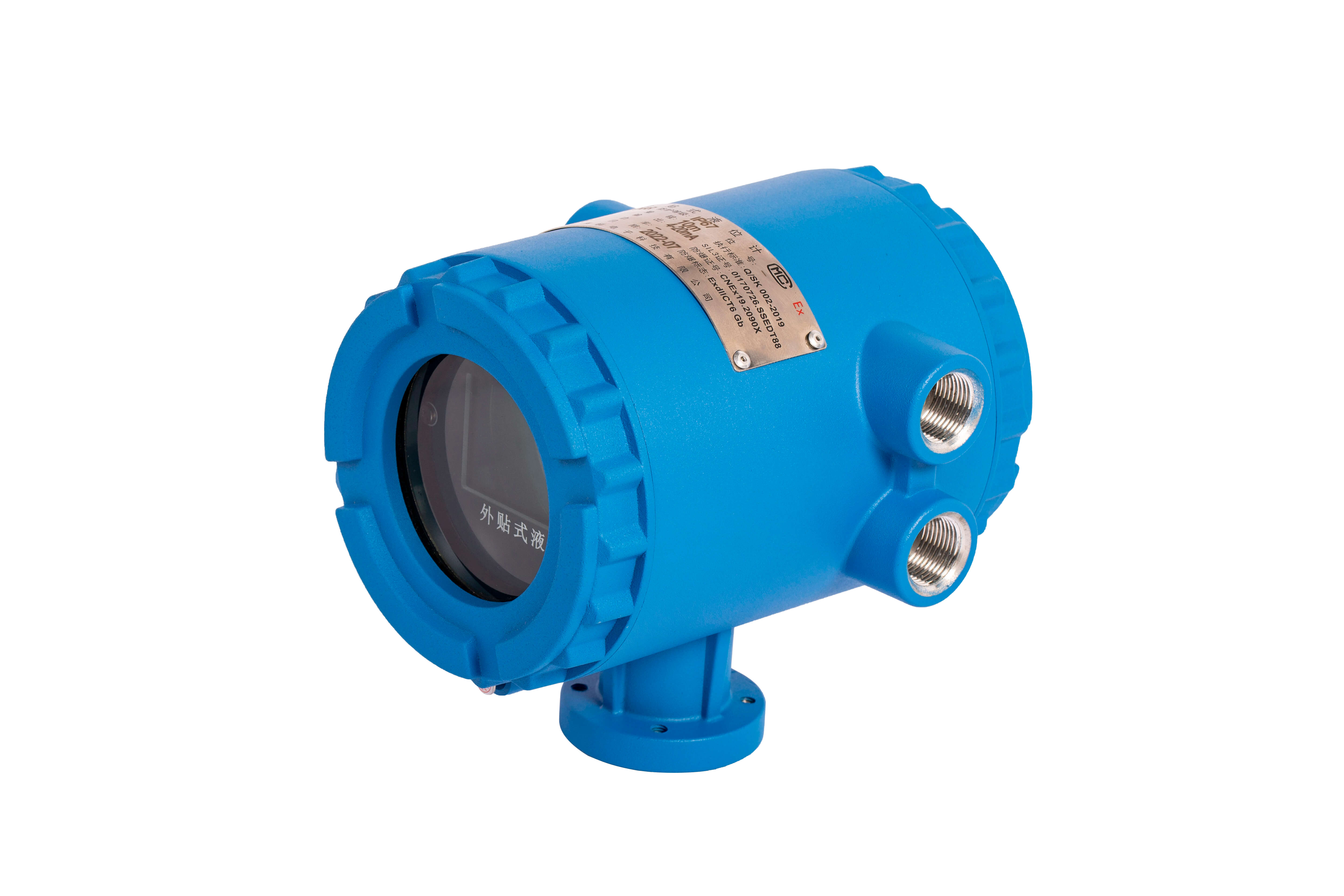

Split type non-contact ultrasonic level transmitter with remote probe, offering high-precision measurement, multi-protocol communication, and explosion-proof certification. Maintenance-free, suitable for liquids and solids in industrial tanks and silos.

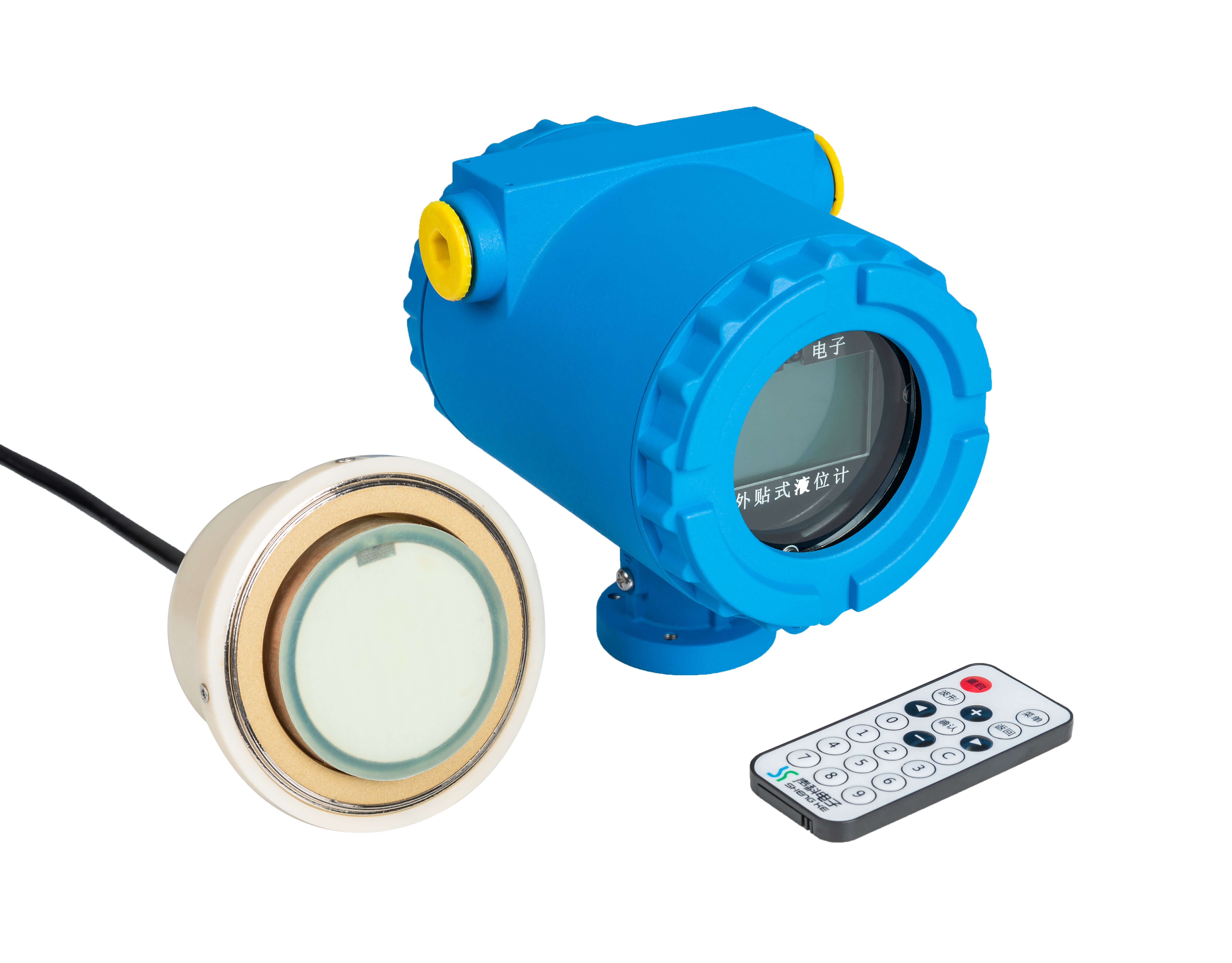

1. Split Structure Design: Separate host and probe, with optional probe-to-host cable lengths (up to 30m). The electronic unit can be installed away from high-temperature, corrosive, or explosive tanks, extending equipment service life and adapting to complex working conditions.
2. Non-Contact Measurement: Maintenance-free and wear-free, the probe does not touch the measured medium, avoiding corrosion, scaling, and clogging issues. Suitable for various media such as liquids, slurries, particles, and dust.
3. High Precision & Wide Measuring Range: 1mm display resolution and 1mm short-term repeatability, with multiple measuring range options (3m, 5m, 10m, 15m, 20m, 30m, 50m). Measurement error as low as ±1‰ FS, meeting the precision requirements of different tank types.

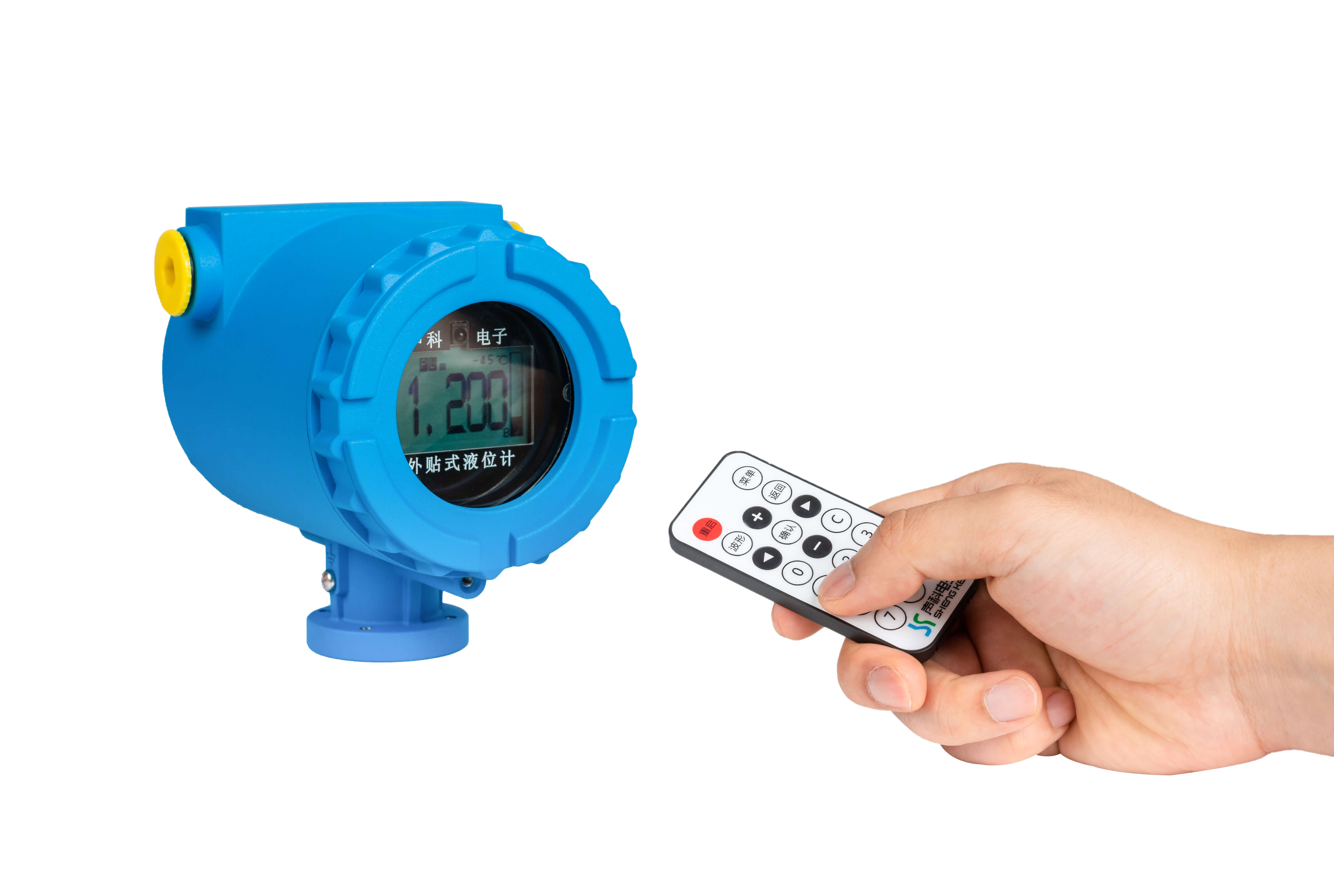

4. Multi-Protocol Compatibility: Supports 4-20mA (with HART), Modbus, RS-485, and infrared communication. Optional 2-wire/4-wire system, compatible with mainstream PLC/DCS systems, enabling remote debugging and data collection.
5. Explosion-Proof & High Protection Level: Certified with Exd Ⅱ CT6 explosion-proof rating and IP65/IP67 protection grade, ensuring stable operation in flammable, explosive, humid, and dusty environments, complying with industrial safety standards.
