Level Meters for Level Measurement & Industrial Level Gauges
Ultrasonic Level Gauge/Radar Level Gauge
Manufacturer
4800m²R&D Team
20+Laboratory
verification/calibrationUsage Scenarios
industrial useProduct Details

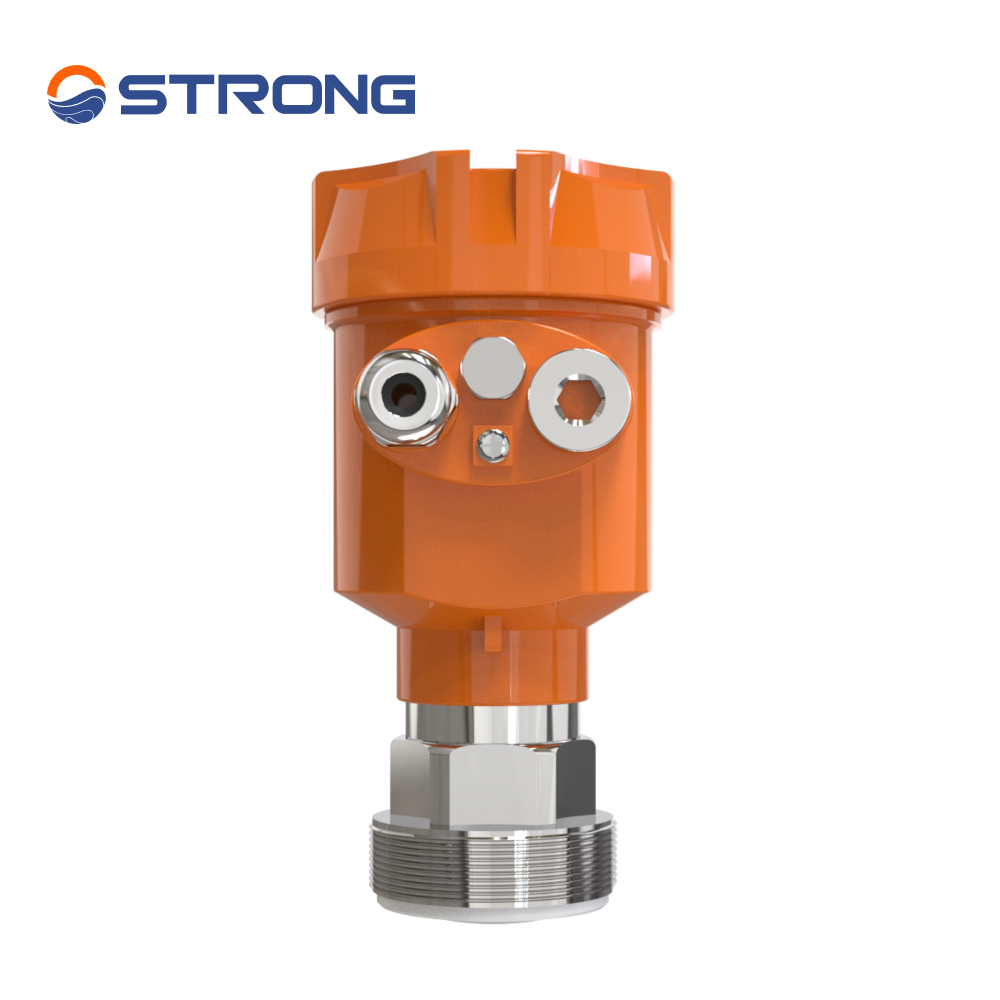

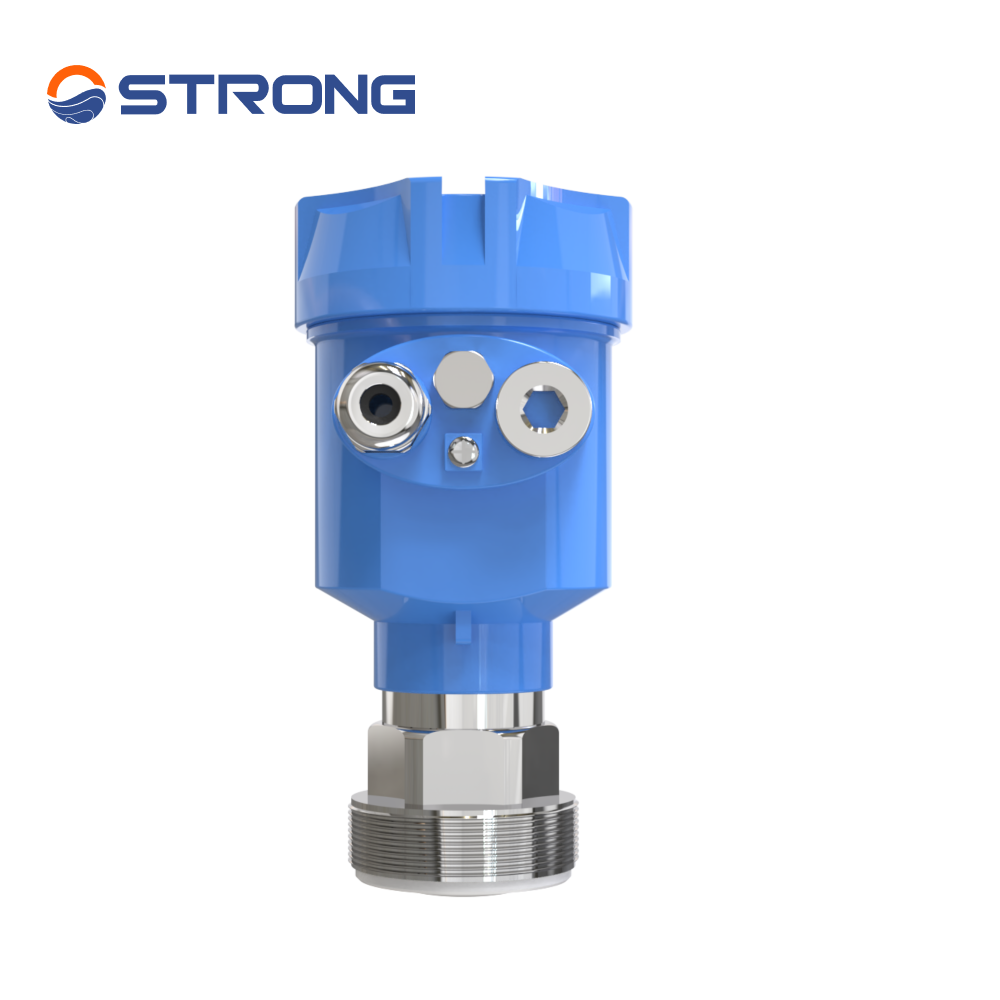

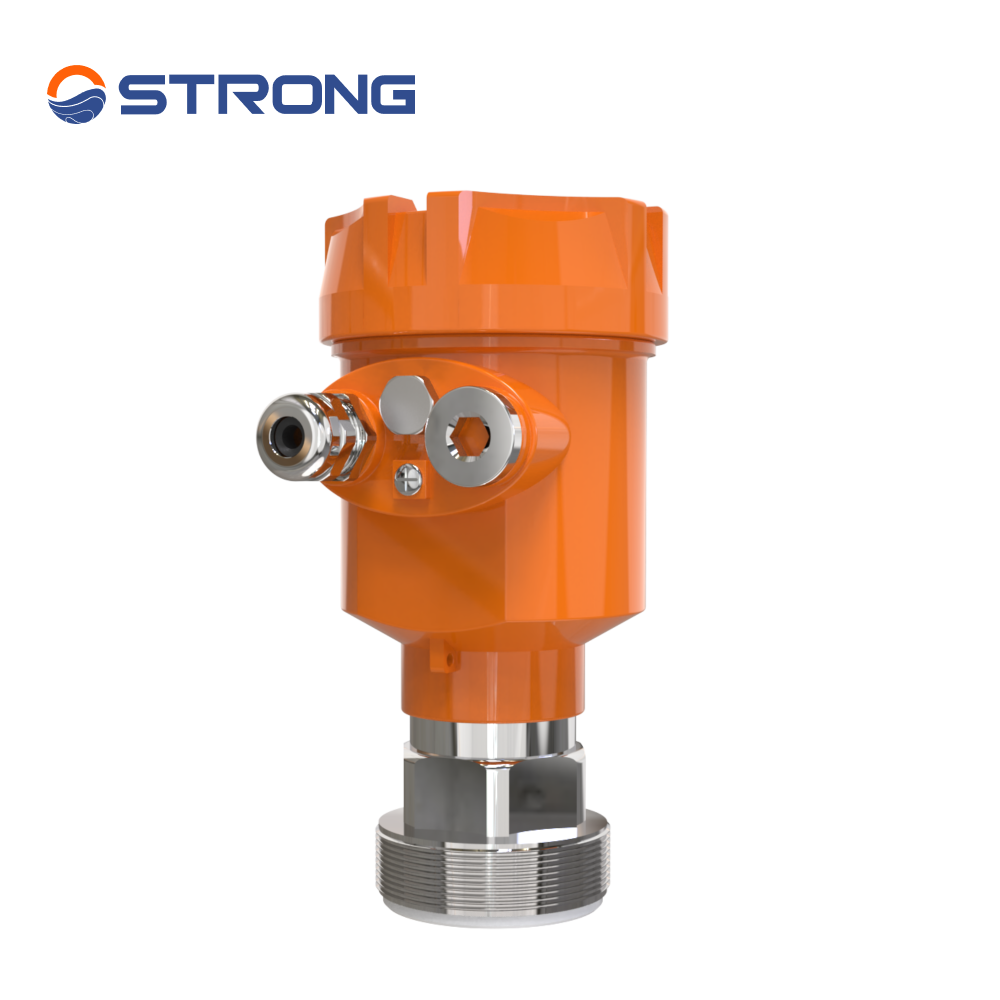

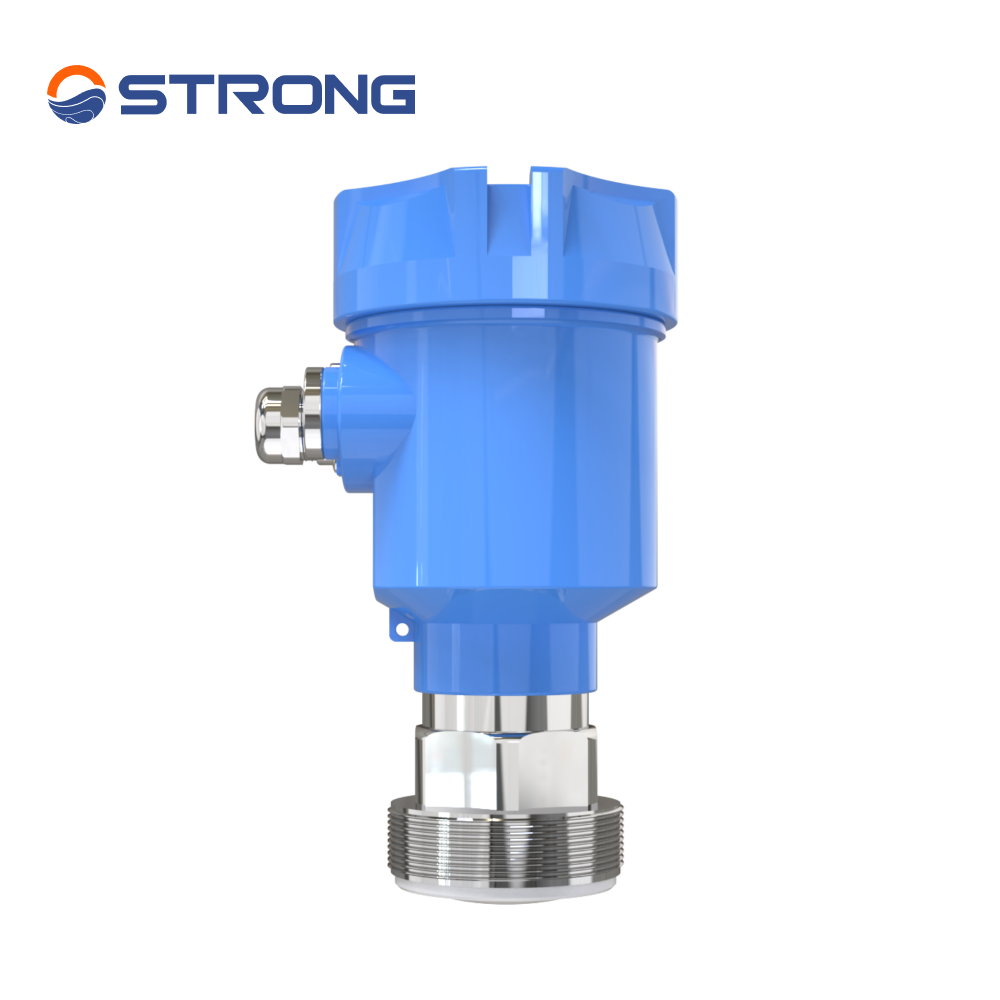

80GHz FMCW Radar Level Transmitter is a high-performance, non-contact level measurement solution developed for industrial applications. Powered by 80GHz frequency-modulated continuous wave (FMCW) technology, it features a narrow beam angle (≤3°) and concentrated energy, enabling stable, high-accuracy (±2mm) measurement even in harsh conditions with steam, foam, dust, or corrosive media.
- ✅ 80GHz FMCW Technology: Narrow beam, anti-interference, high accuracy (±2mm)
- ✅ Non-Contact Design: No media contact, low maintenance, long service life
- ✅ Wide Application: Suitable for liquid/solid, high temp/pressure, corrosive media
- ✅ Multi-Protocol Support: 4-20mA, HART, Modbus optional
- ✅ High Protection: IP67/IP68, explosion-proof design for hazardous areas
- ✅ Easy Installation: Compact structure, top-mounted installation, no tank modification needed
Details
Two-wire system
1. Range specifications: 5m, 10m, 15m, 20m
2. Measurement error: ±1%FS, ±2%FS, ±5%FS
3. Signal output: 4~20mA/Modbus
4. Power supply: DC 24V (22V~30V)
5. Operating ambient temperature: -20℃~+70℃
6. Operating ambient humidity: (0%~95%) RH
7. Protection class: IP67
8. Display: LCD, mobile phone APP
9. Host weight: approximately 215 grams

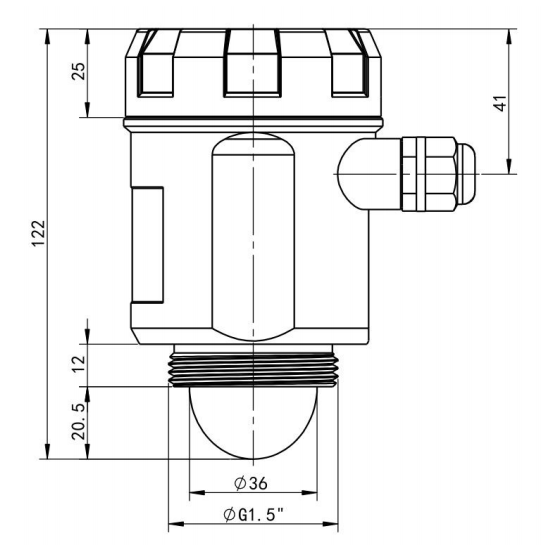

10. Host dimensions: 99mm*73mm*122mm
11. Mounting interface thread: G1.5
