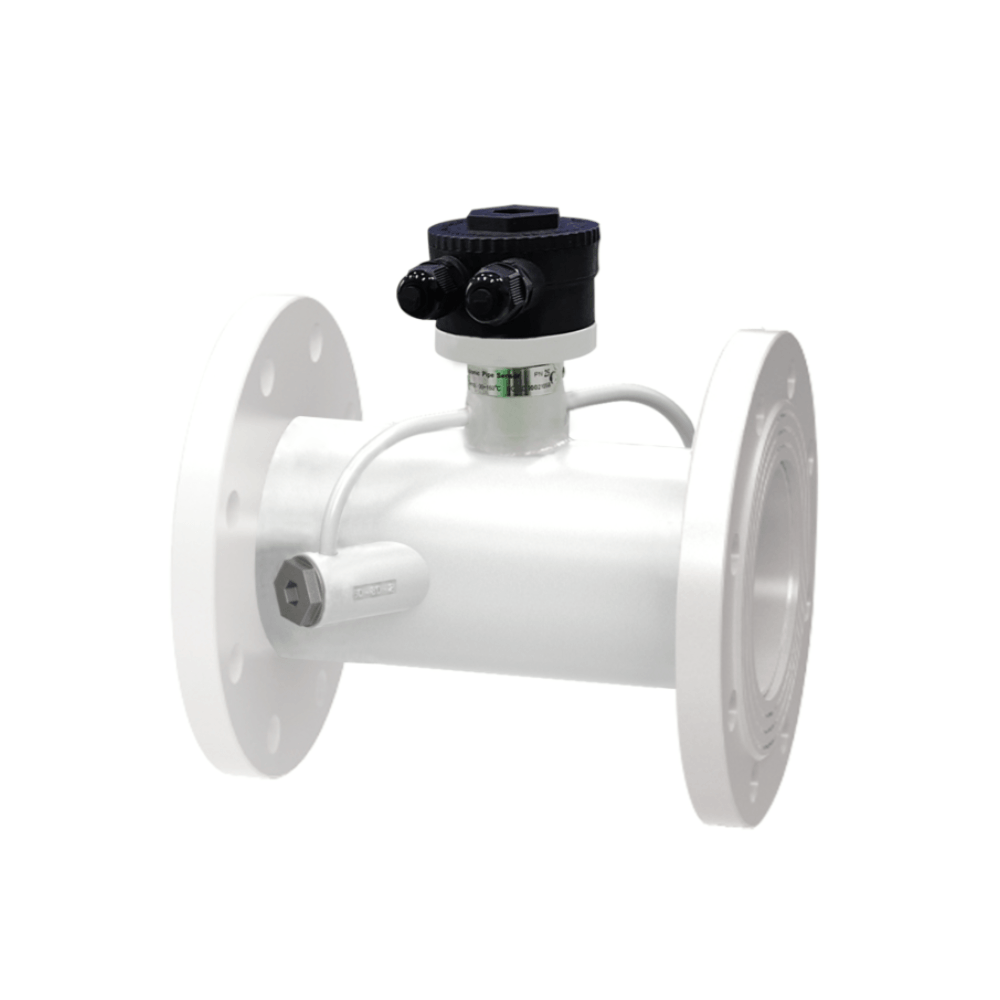

This ultrasonic flowmeter and calorimeter is specially designed for high-precision measurement scenarios, adopting standard flange connection for stable and reliable installation. It integrates flow and heat measurement functions, with excellent measurement accuracy, suitable for various liquid media. Featuring advanced ultrasonic technology, it ensures stable data output, easy operation and low maintenance, widely used in heating, industrial process control and other fields requiring high-precision flow and heat measurement.
Details
1. Range: ± 0.03m/s~± 12m/s
2. Accuracy: ± 1%
3. Repetitive accuracy: 0.2%
4. Linearity: ± 1%
5. Pipe diameter: DN15mm~DN1200mm
6. Output: Analog output: 4~20mA, maximum load 750 Ω
7. Pulse output: 0~10KHz
8. Communication: RS232/RS485 Modbus
9. Power supply: 10~36VDC/AC90~245V
10. Display: 240 * 128 LCD
11. Working temperature:
Transmitter: -20 ℃~60 ℃
Sensor: -40 ℃~80 ℃ (room temperature: TT01, TT02)
Sensor: -40 ℃~130 ℃ (high temperature: TT03, TT05)
Sensor: -40 ℃~180 ℃ (specially designed high temperature: TT02H)
Small diameter sensor: 0 ℃~65 ℃ (room temperature: TT02S)
Small diameter sensor: 0 ℃~115 ℃ (high temperature: TT03S)
12. Humidity: Up to 99% RH, non condensing
13. Transmitter: IP65, ABS+PC
14. Sensor:
Sealed design, IP68
Twisted shielded outgoing line
15. Standard/maximum wire length: 9 meters/300 meters
