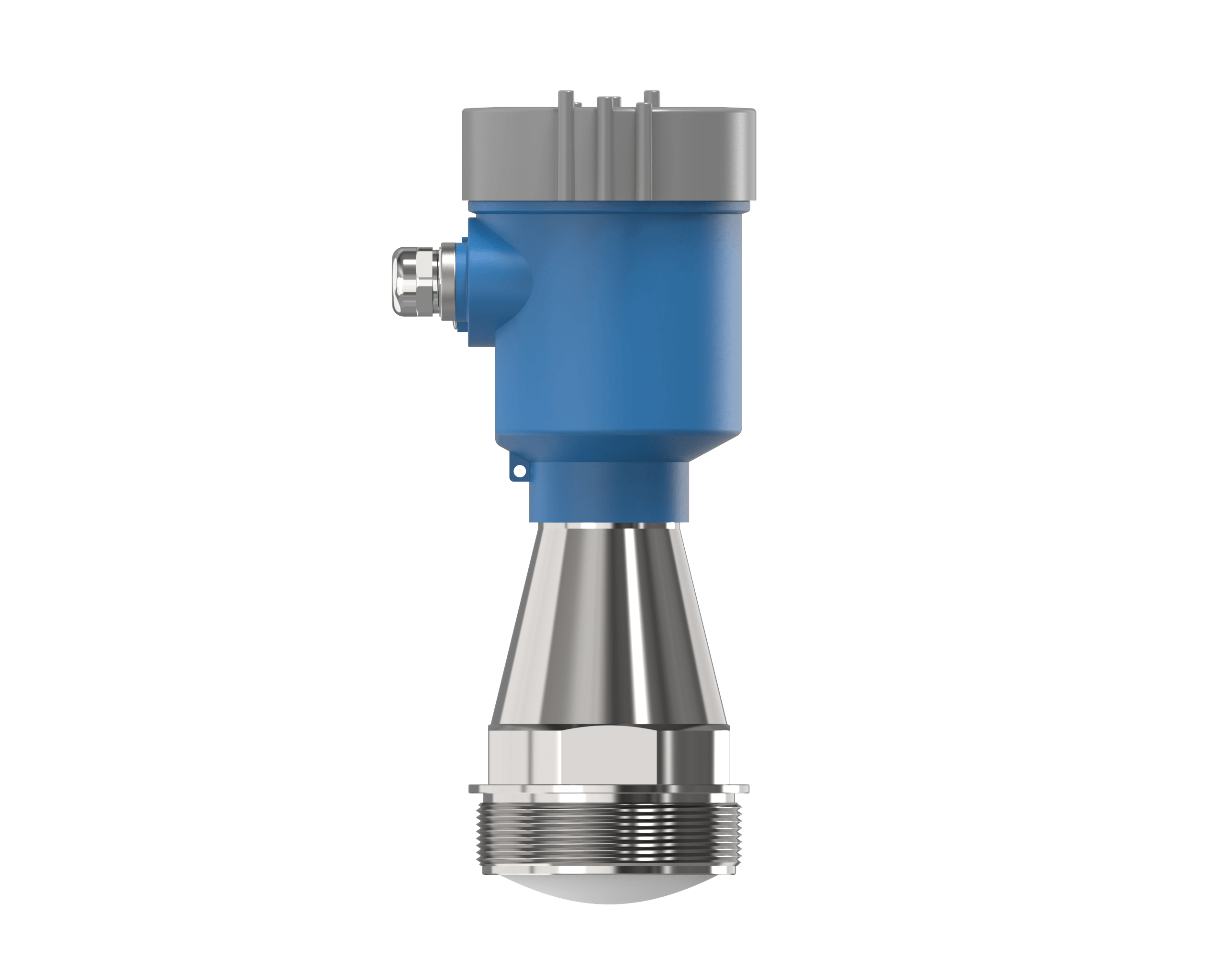

high-temperature 80GHz FMCW radar level transmitter features a heat sink design and flange connection, delivering stable, non-contact level measurement for high-temperature media. It offers ±2mm accuracy, strong anti-interference against steam/foam, and supports 4-20mA/HART protocols. Ideal for oil, chemical, and power plant applications.
80GHz FMCW Technology: Ultra-narrow beam angle for high-precision (±2mm) measurement.
High-Temperature Resistant: Integrated heat sink design ensures stable operation in high-temperature environments up to 250℃ (higher temperature optional).
Non-Contact Design: No direct contact with media, eliminating corrosion, scaling, and wear, reducing maintenance costs.
Strong Anti-Interference: Works reliably in conditions with steam, foam, dust, and high-temperature vapors.
Flange Mounting: Standard flange connection for secure, leak-proof installation in industrial tanks and reactors.
Multi-Protocol Support: Compatible with 4-20mA and HART communication protocols for easy integration.
0
Details
Operating Frequency: 80GHz (K-band)
Measuring Principle: FMCW (Frequency Modulated Continuous Wave)
Measuring Range: 0 to 30 meters (extendable to 70 meters upon request)
Measurement Accuracy: ±2 mm
Repeatability: ±1 mm
Beam Angle: ≤ 3°
