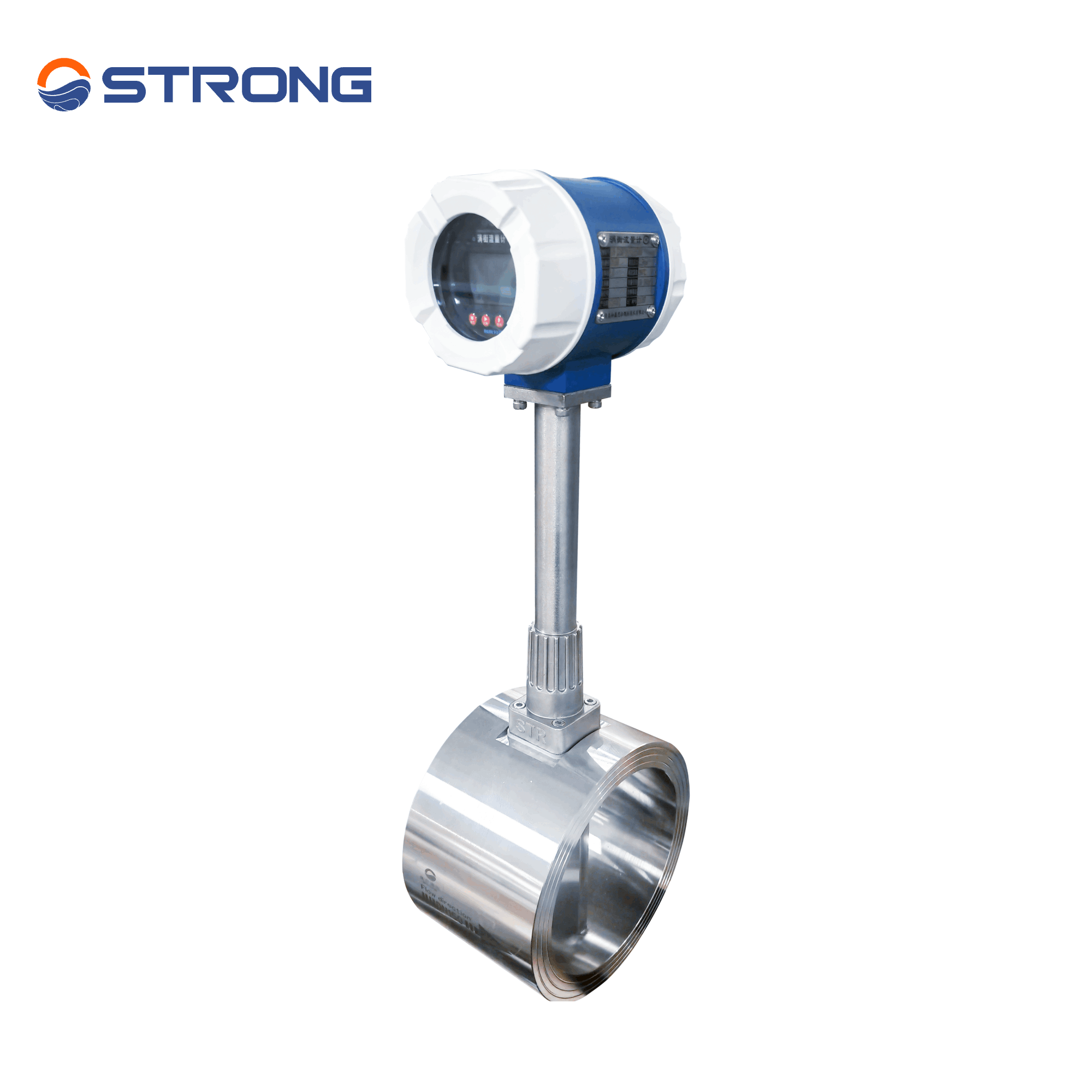

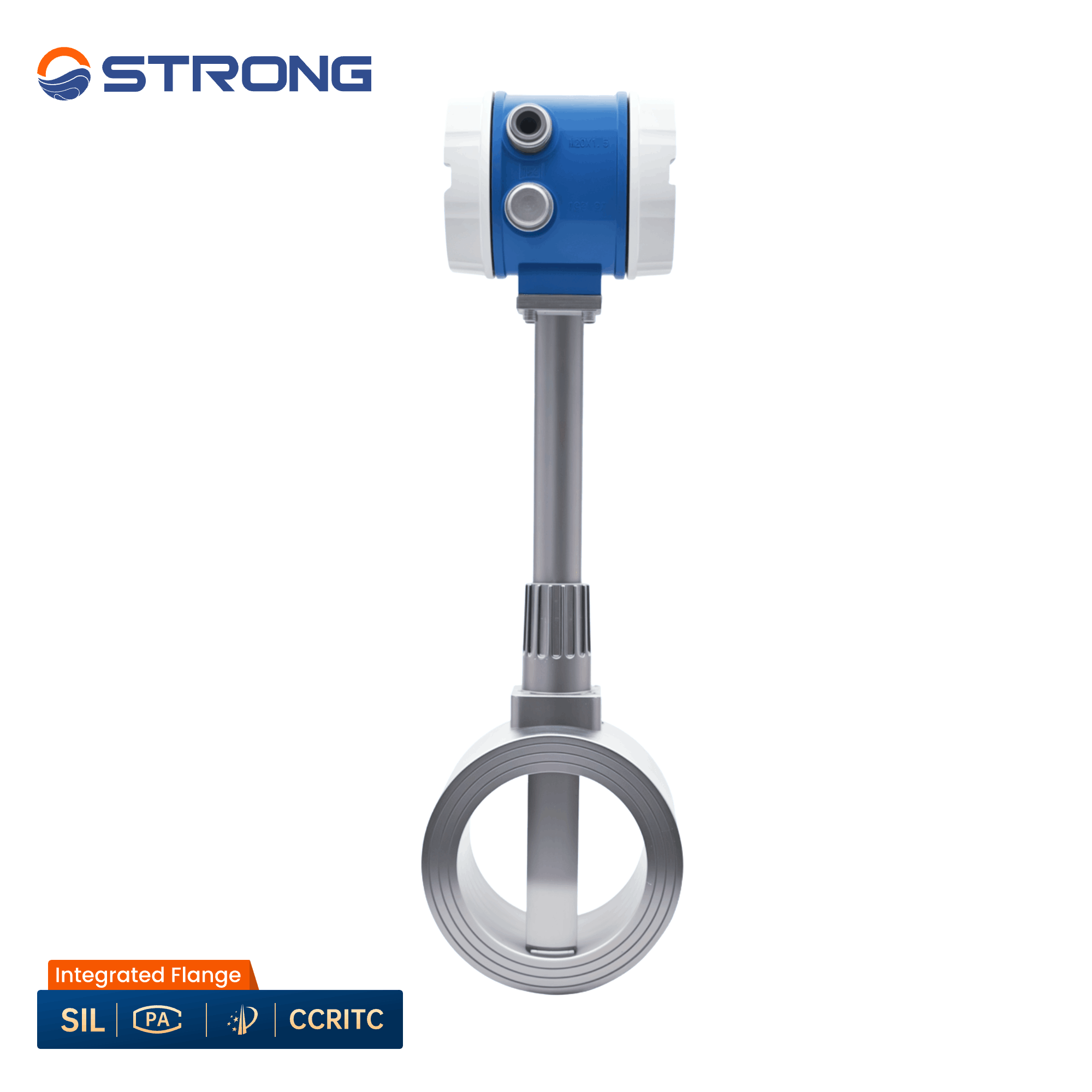

The LUB series digital version vortex flowmeter adopts advanced digital processing technology and is designed for precise measurement of various fluid flow rates in industrial sites. It has significant advantages such as stability, reliability, strong adaptability, and easy installation, and can be widely used in various complex working conditions.
The product is equipped with high-precision integrated chips and professional signal processing algorithms, which can effectively filter abnormal fluctuation signals caused by pipeline vibration, electromagnetic interference, etc., ensuring accurate and stable measurement data and greatly improving the reliability of the instrument in harsh environments.

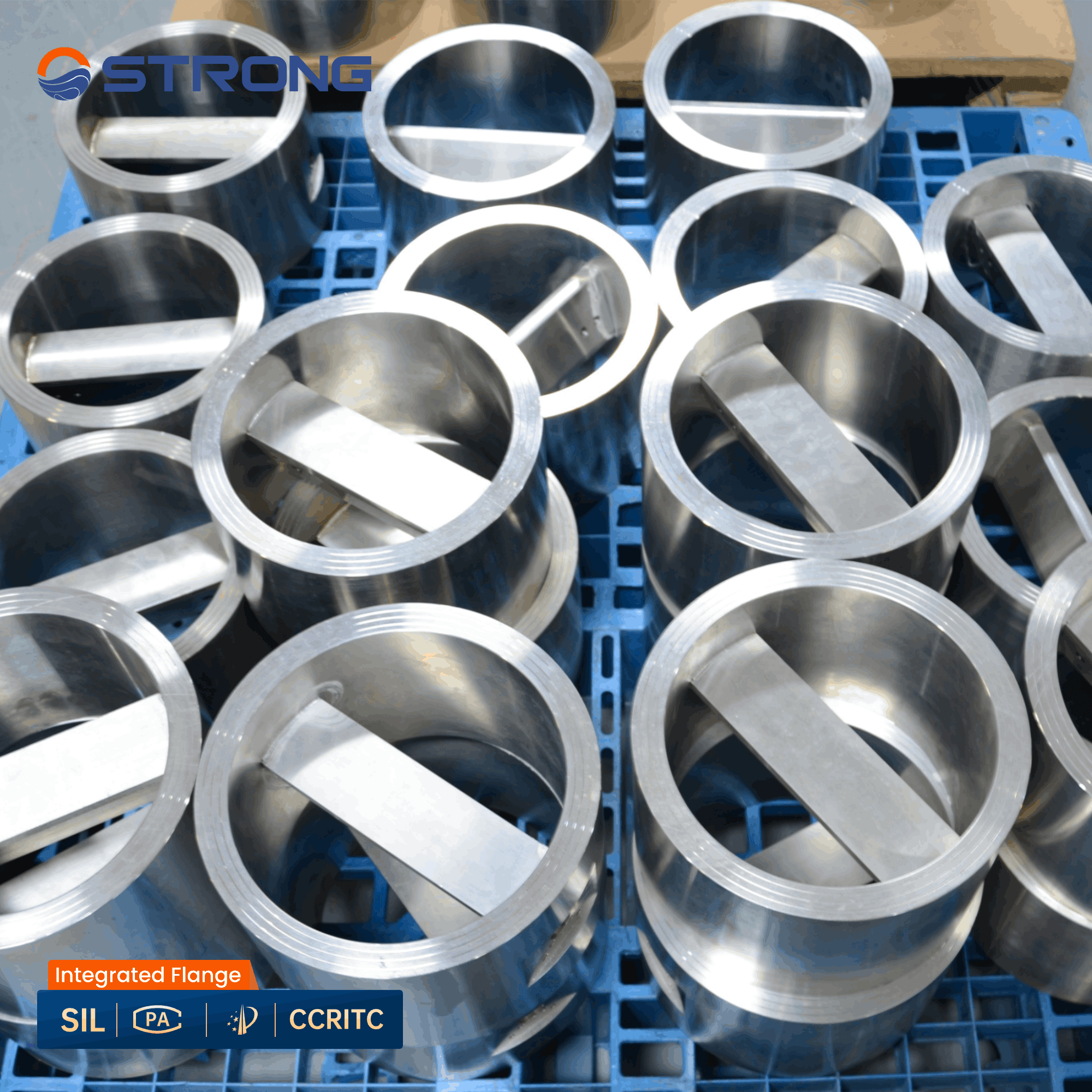

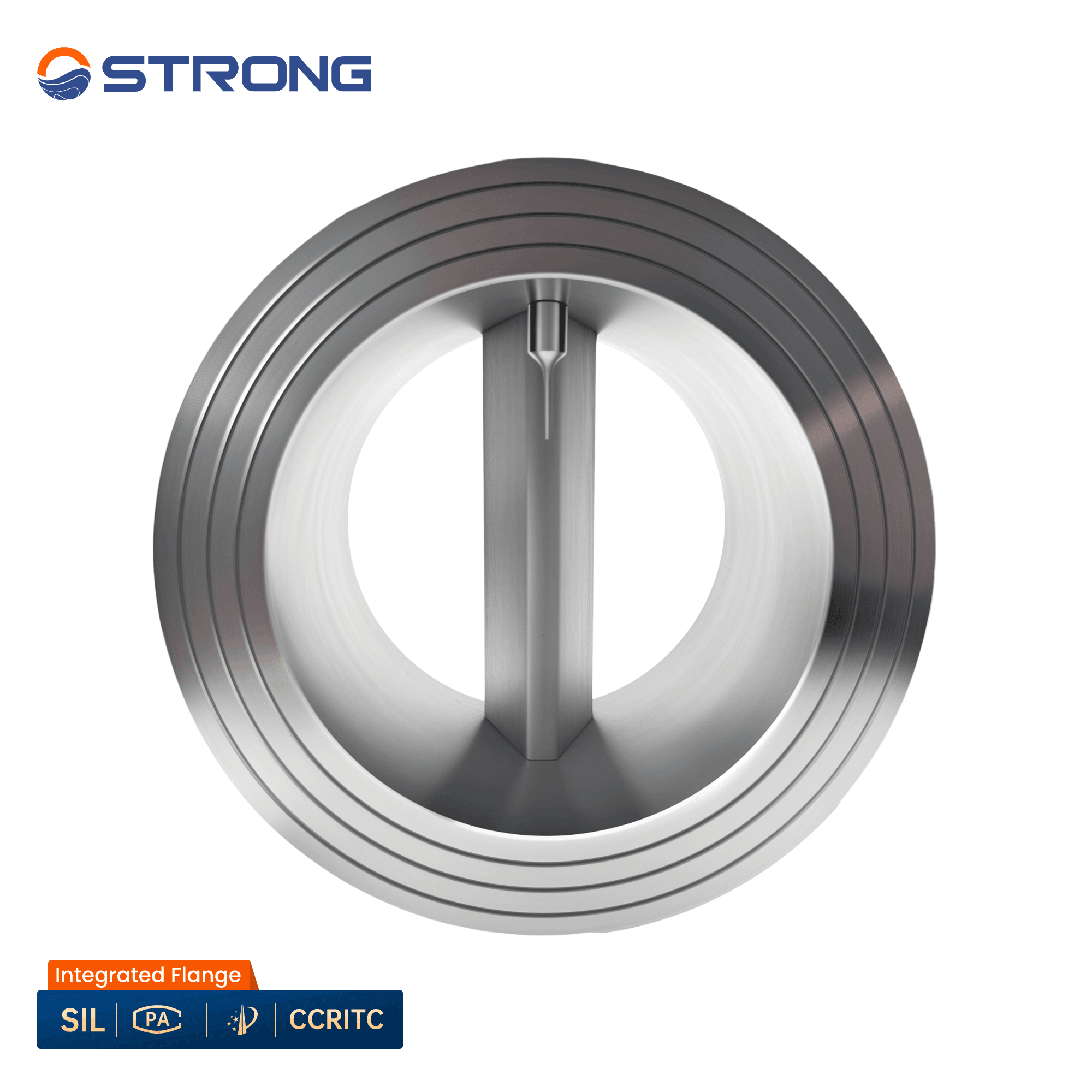

This series of flow meters adopts a flange clamping connection structure, with flexible installation layout and strong adaptability, which can meet the diverse installation needs on site. The measurement medium covers gases, water, compressed air, and high-temperature steam, taking into account both conventional fluid and special working condition medium measurement, and is applicable to a wide range of scenarios.

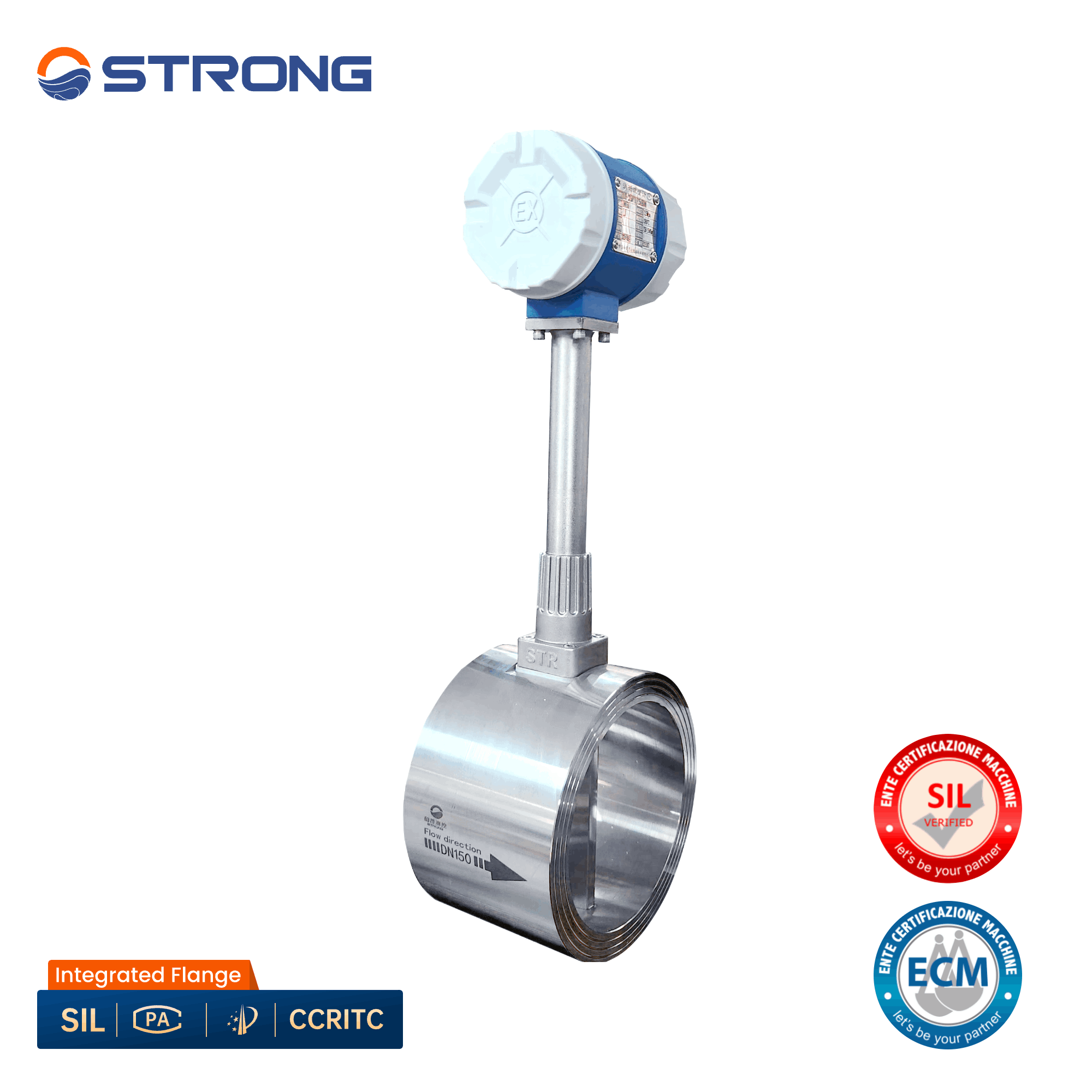

The production process of the product strictly follows industry standards, has complete special equipment production qualifications, and has passed SIL functional safety certification. The safety performance and quality standards have reached the advanced level of the industry, and can operate stably in various industrial conditions such as chemical, power, metallurgy, HVAC, energy-saving monitoring, etc., providing users with accurate, safe, and long-term flow measurement solutions.
0Details
1. nominal diameter (mm): 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500
2. Tested media: steam, compressed air, natural gas, oxygen, nitrogen, carbon dioxide, mixed gases, and various liquids, etc
3. Production standard: JB/T9249-2015
4. Verification regulation: JJG1029-2007
5. Nominal pressure: 1.6MPa, 2.5MPa, 4.0MPa, non-standard customization
6. Medium temperature: 0-280 ℃; 0～350℃
7. Table body material: 06Cr19Ni10, non-standard customization
8. Accuracy level: 1.0 level; Level 1.5; 0.75 grade (liquid)
9. Output signal: frequency type pulse, 4-20mA standard current
10. Power supply voltage:+12VDC~24VDC
11. Explosion proof rating: Ex d IIC T6 Gb or Ex ia IIC T6 Ga
12. Protection level: IP65
13. Environmental conditions: ambient temperature -40~55 ℃, relative humidity 5%~90%, atmospheric pressure 86~106kPa
14. Flange standards: HG/T 20592, GB/T 9124, non-standard customization
15. Electrical interface: M20 * 1.5, 1/2NPT
16. Flow rate range:
Gas: 3m/s-70m/s Liquid: 0.3m/s-7m/s
