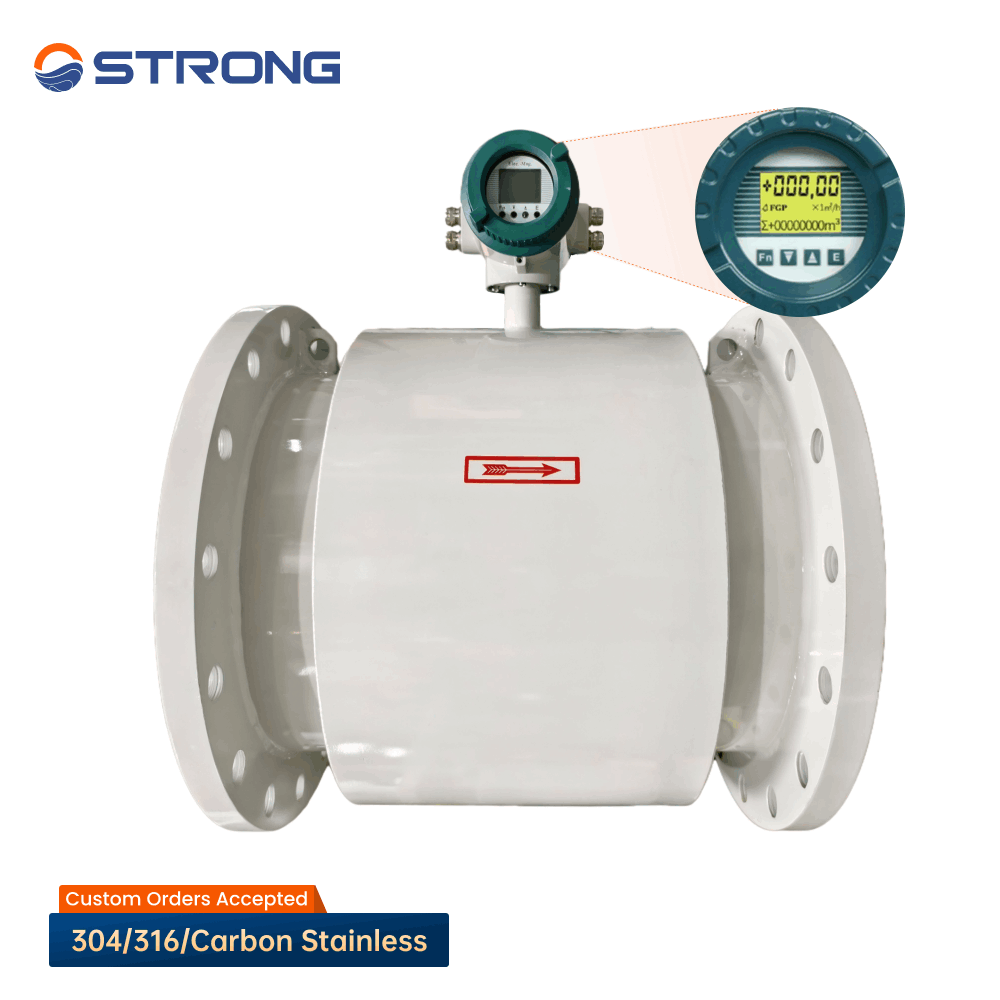

The explosion-proof high-precision electromagnetic flowmeter is specially developed for flow measurement of conductive liquids in hazardous environments. It adopts advanced electromagnetic induction technology and explosion-proof structure design, complying with explosion-proof standards (ExdⅡBT4/ExdⅡCT6), which can be safely used in flammable, explosive and corrosive industrial sites. With high measurement accuracy (±0.5%~±1.0%), wide range ratio (100:1) and stable performance, it is not affected by fluid density, viscosity, temperature and pressure changes, ensuring accurate and reliable data output.
Equipped with corrosion-resistant lining (optional PTFE, PFA) and standard flange connection, the flowmeter has no moving parts in the measuring tube, which is non-clogging, wear-resistant and easy to maintain. It supports 4-20mA analog signal and RS485 digital communication, which can be seamlessly connected to the automatic control system to realize remote monitoring and data statistics. It is widely used in chemical, petrochemical, pharmaceutical, oil and gas, coal chemical and other industries, suitable for measuring clean water, sewage, chemical medium, corrosive liquid and other conductive fluids in explosive hazardous areas.
Details
1.Tested medium: Conductive liquid (tap water, river water, seawater, beer, beverages, chemical raw materials, mud, slurry, etc.)
2.Execution standard: Electromagnetic flow sensor "JB/T9248-2015"
3.Verification regulation: JJG1033-2007 Electromagnetic flowmeter
4.Pipeline diameter: DN3-3200 nominal pressure: 0.5, 1.0, 1.6, 2.5, 4.0, 6.3, 10Mpa
5.Temperature range: -20~150 ° C
6.Flow velocity range: 0.3~12m/s
7.Accuracy level: ± 0.5%, ± 1%
8.Conductivity: ≥ 20 μ s/cm (standard), ≥ 5 μ s/cm (customized)

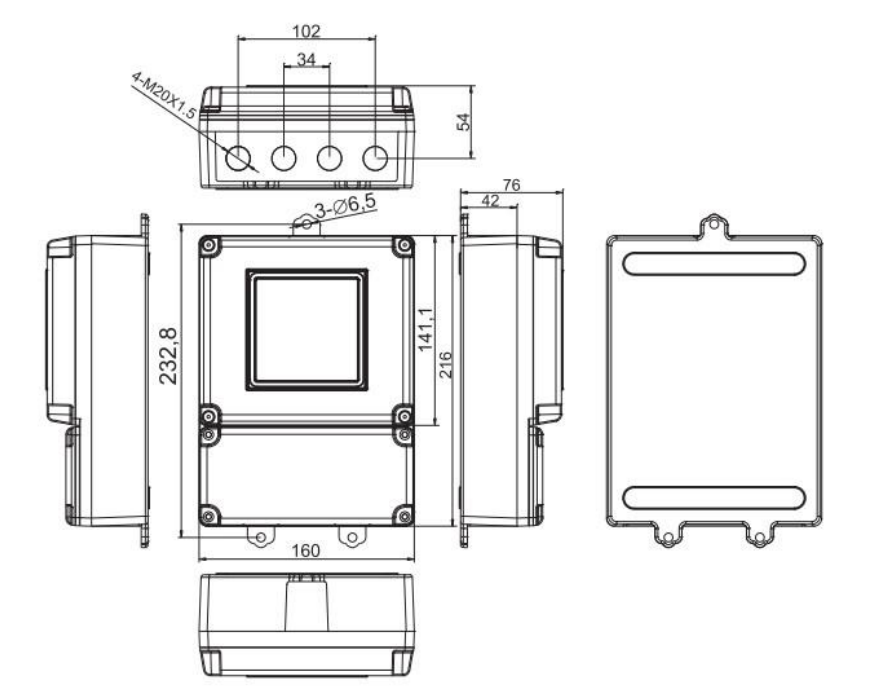

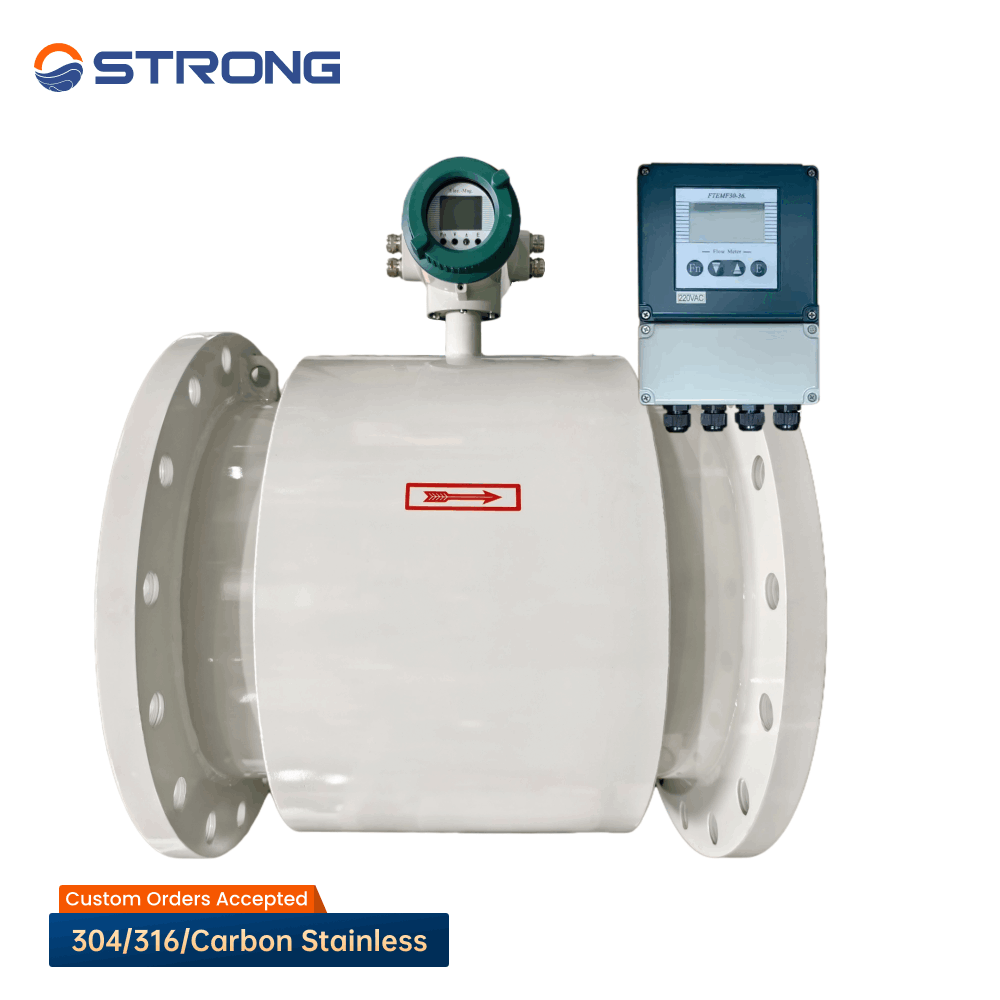

9.Structural form: integrated structure, split structure (with 5-meter standard cable), plug-in type
10.Number of electrodes: 4 electrodes (≤ DN500), 6 electrodes (≥ DN600)
11.Electrode materials: 316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum Iridium Alloy, Tungsten Carbide
12.Lining materials: chloroprene rubber, polytetrafluoroethylene PFA、 Polyurethane, perfluoroalkoxy, ceramics, etc
13.Body material: carbon steel, 304, 316L Power supply voltage: 220VAC, 24VDC, 3.6V Lithium battery power supply
14.Instrument power consumption:<15W Signal output: pulse, 4-20mA, HART protocol, Modbus protocol, relay output, GPRS wireless remote transmission

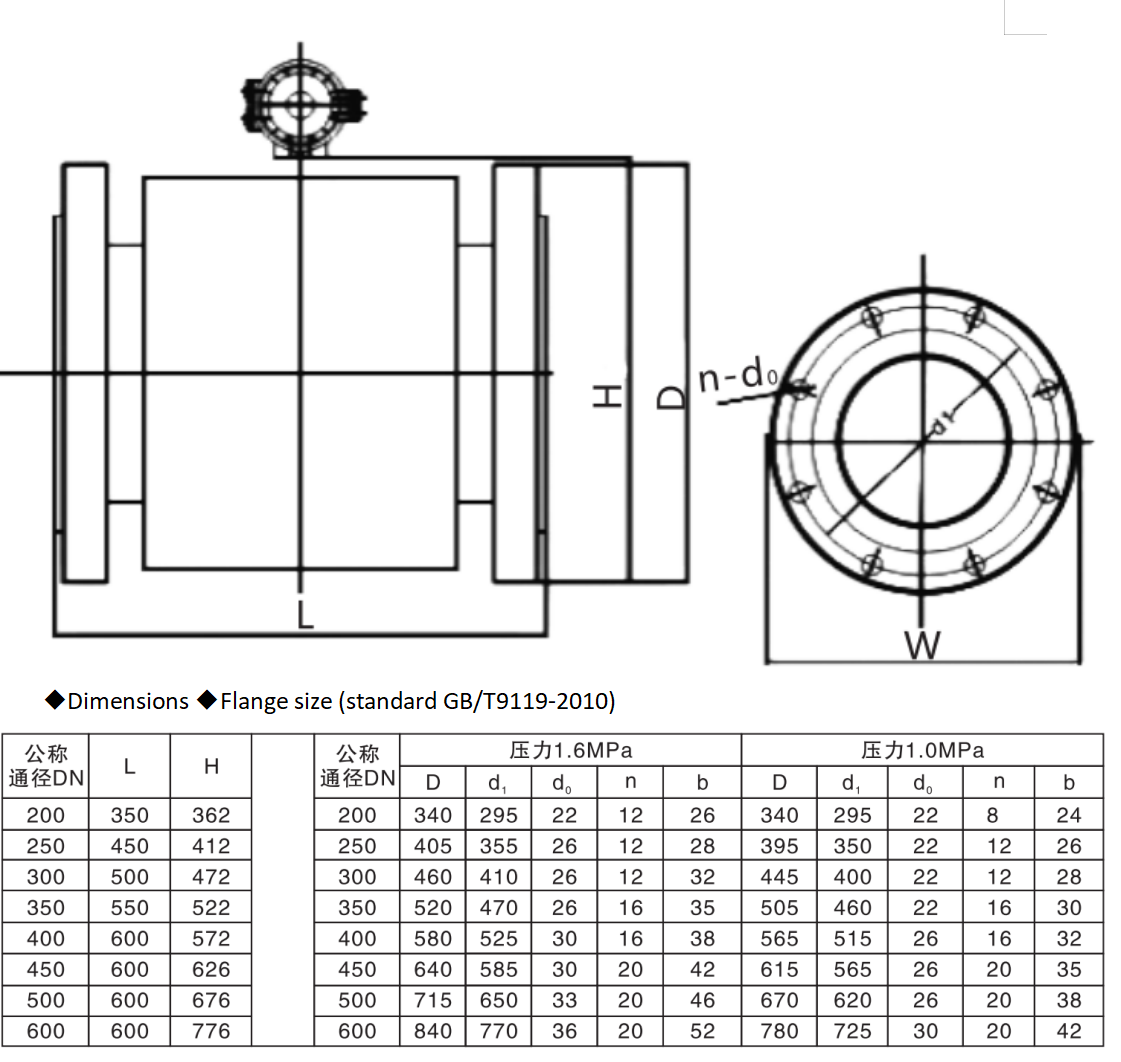

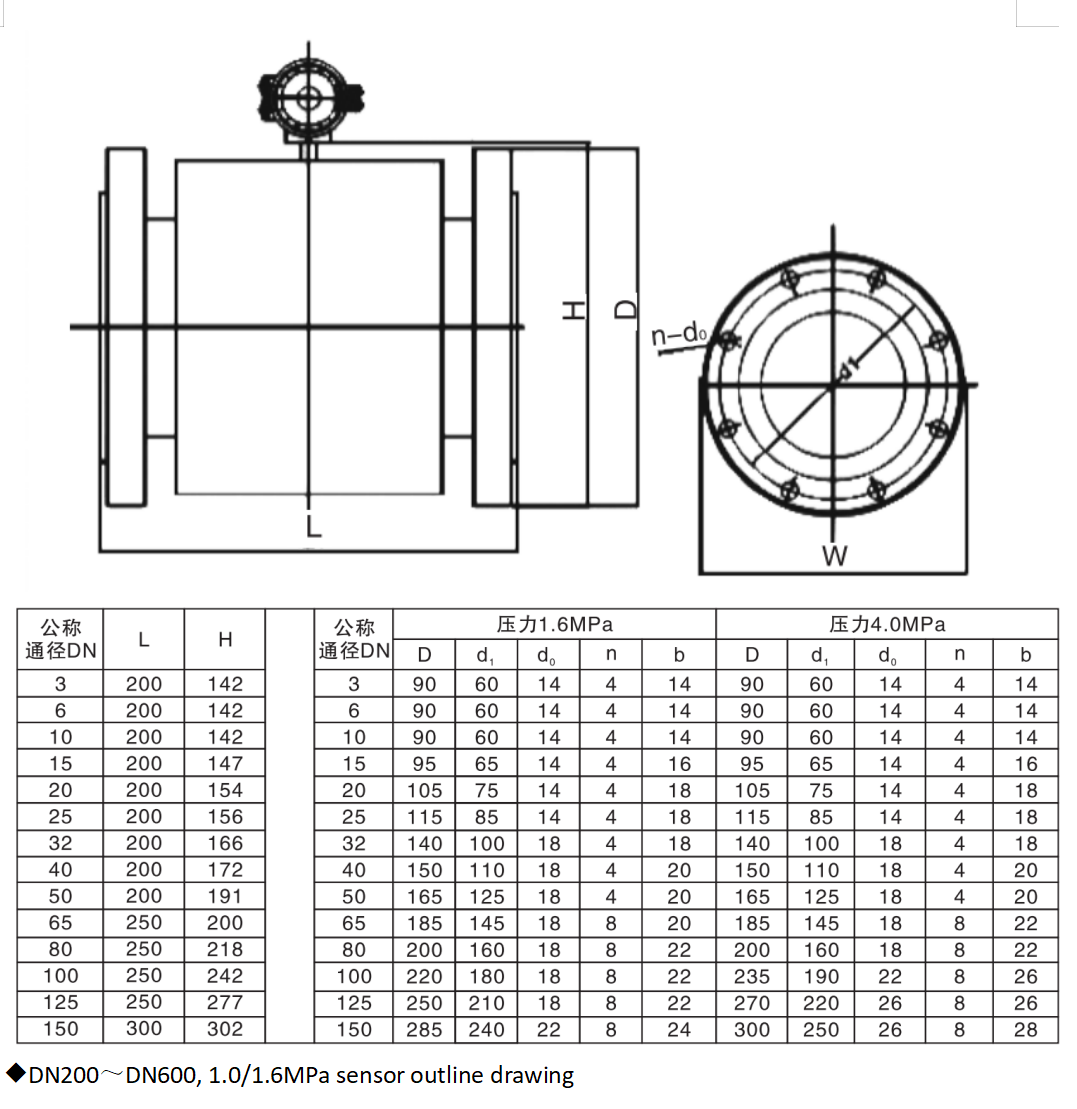

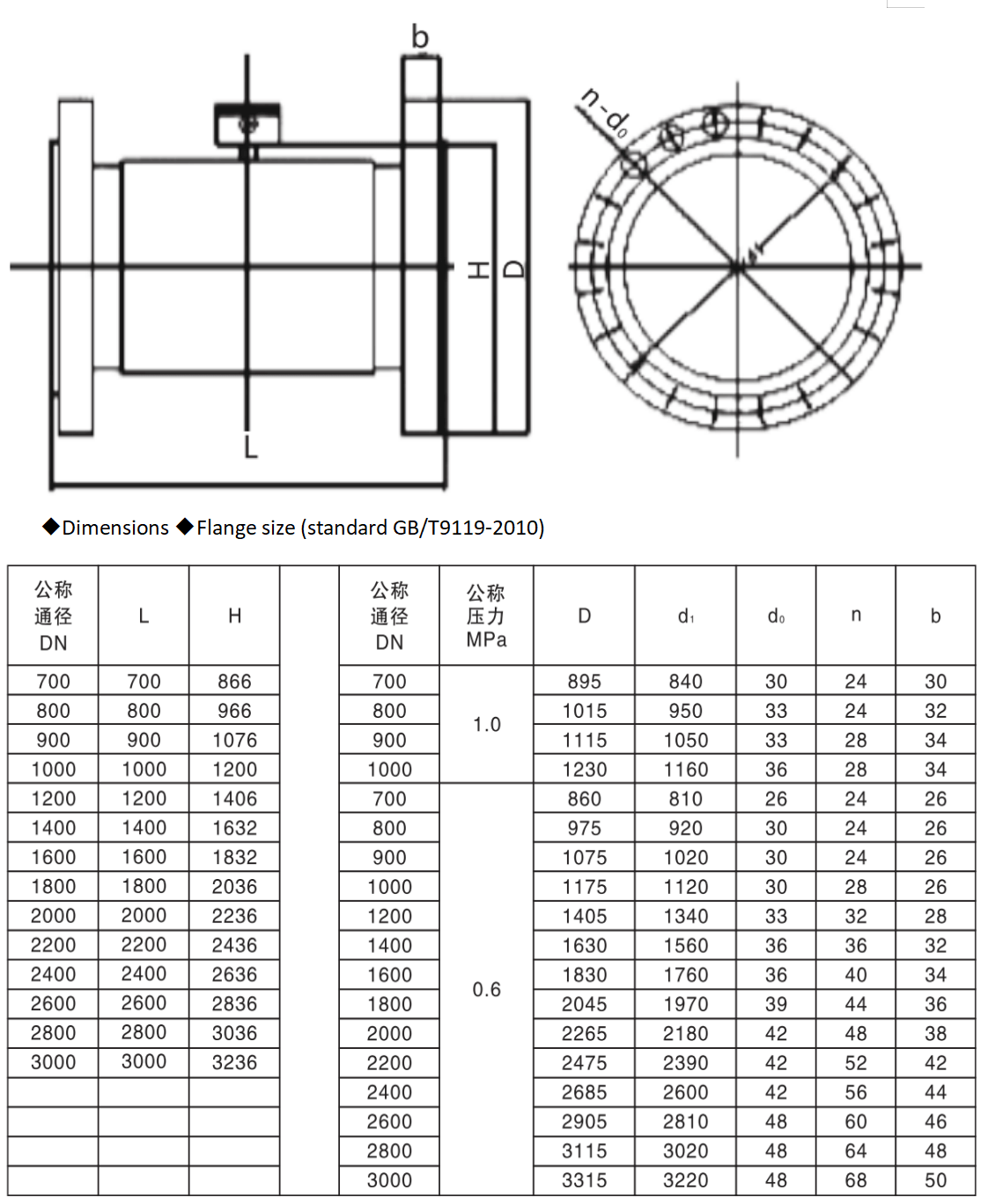

15.Installation form: flange connection, plug-in flange standard: GB/T9119-2010 (other standards can be customized)
16.Protection level: IP65, IP67, IP68
17.Explosion proof rating: non explosion proof, explosion proof Exd ib IIC T6 Gb
