The HSP series balanced flowmeter is a novel differential pressure flow meter. It utilizes unique technology and processing techniques to approximate the flow characteristics of a Venturi tube, achieving a relatively small permanent pressure loss in exchange for a larger stable differential pressure value, thus enabling high-precision, long-term stable measurement.

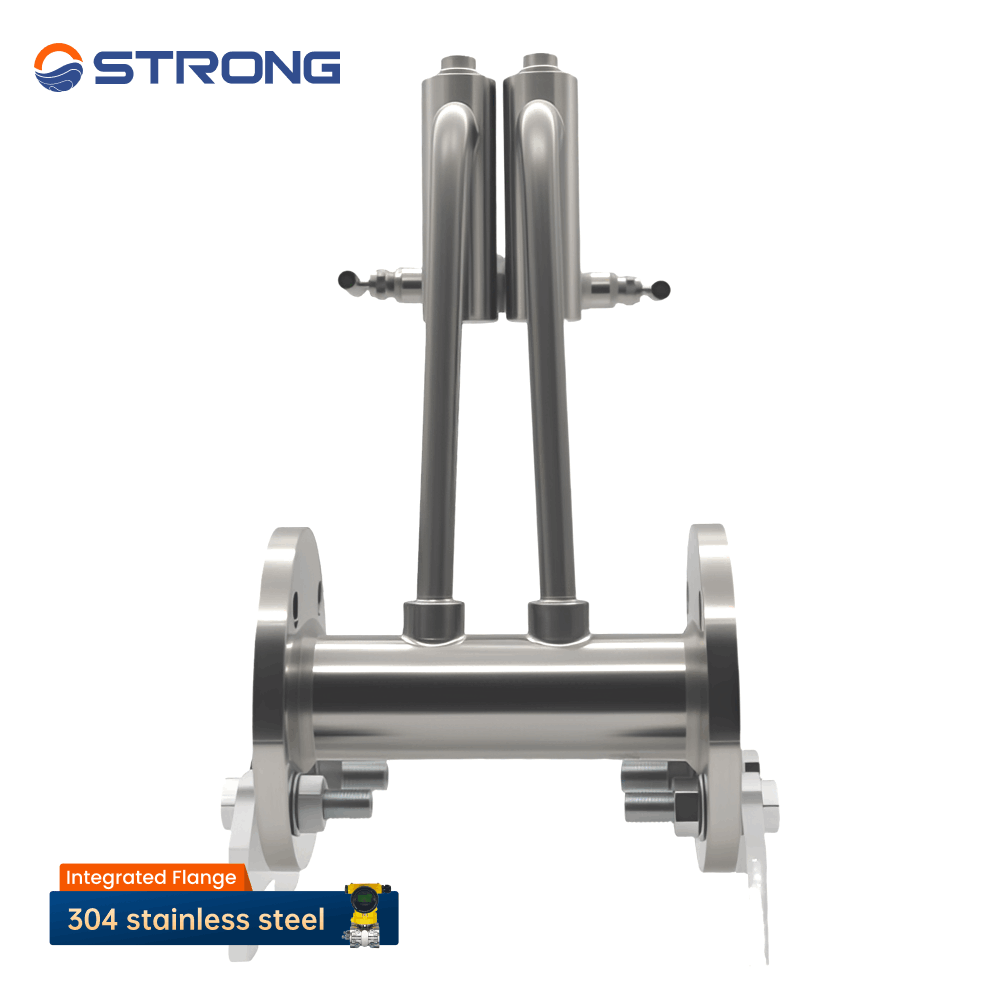

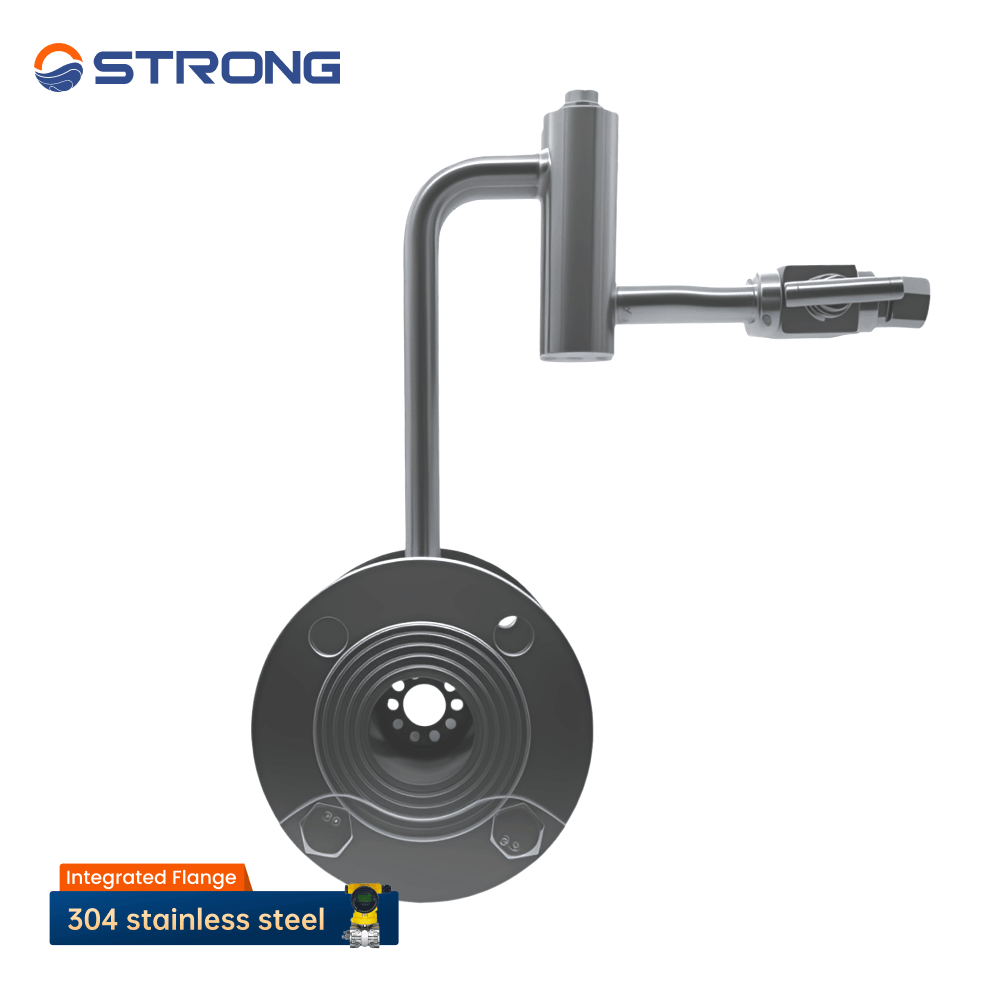

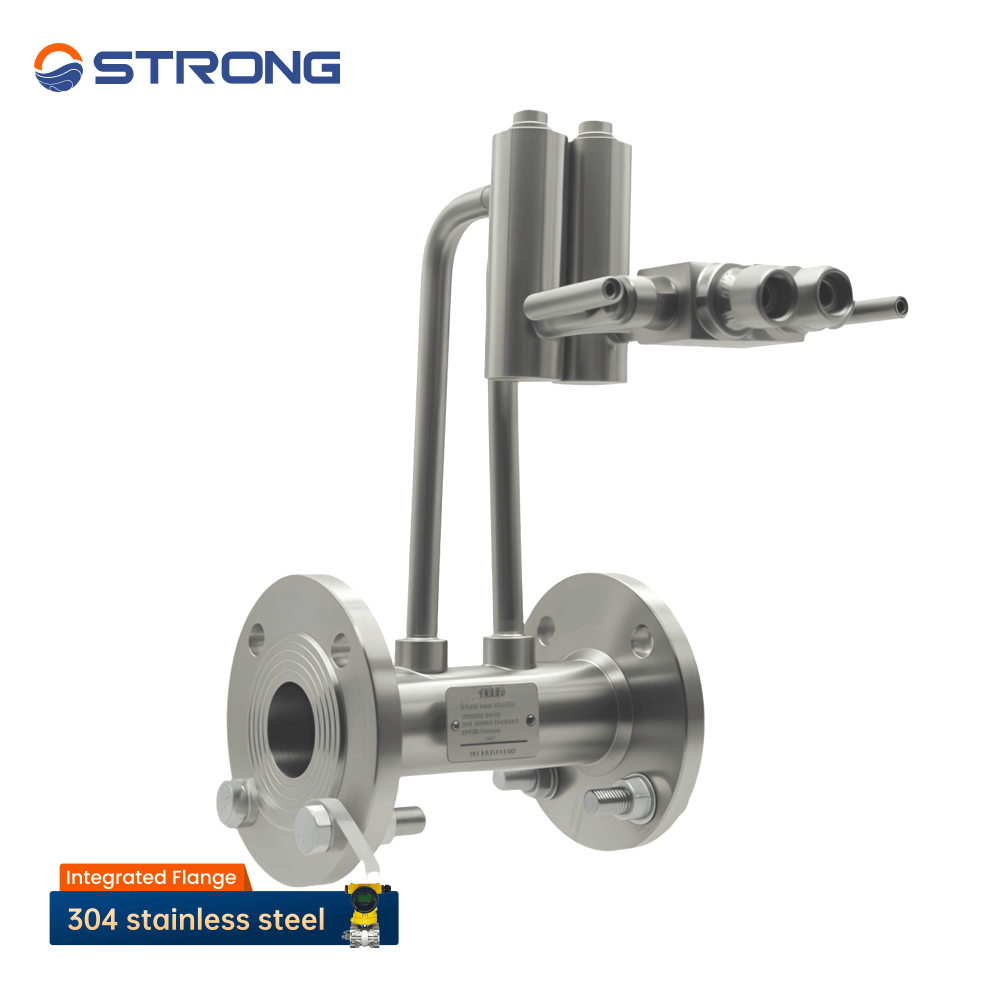

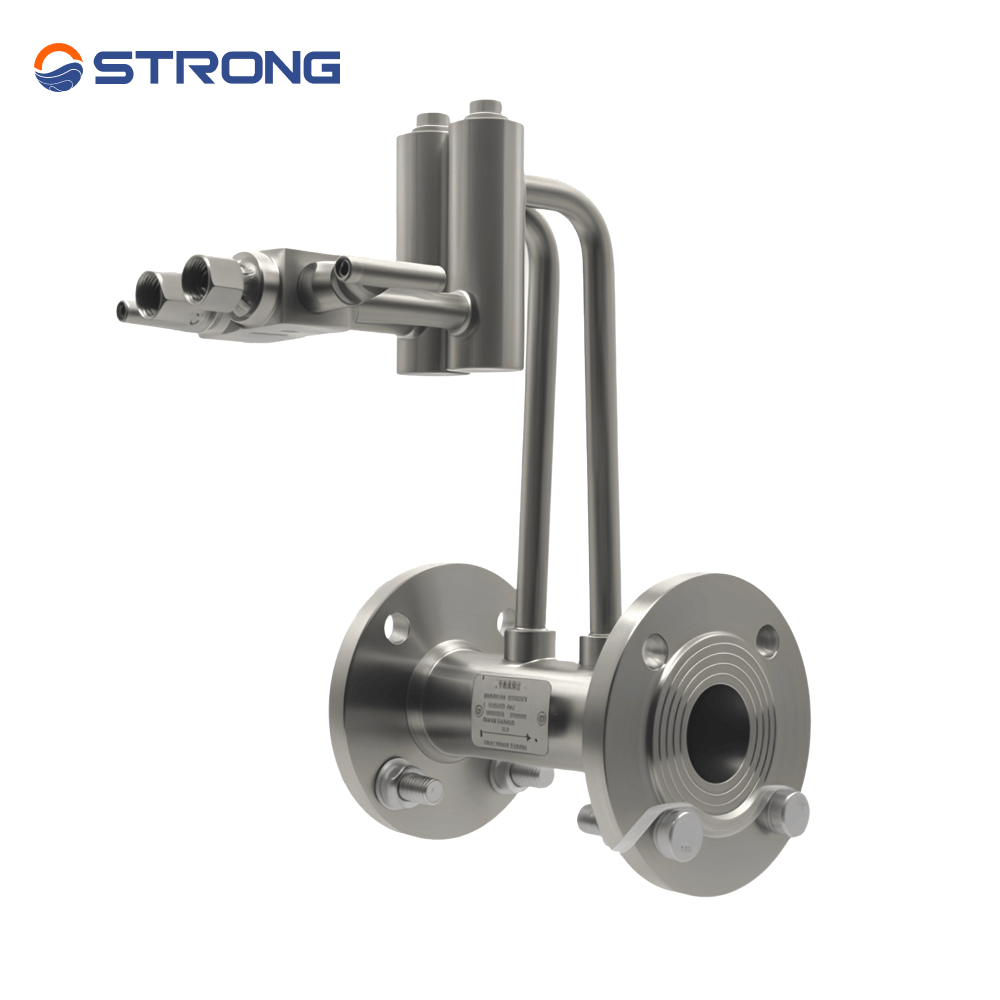

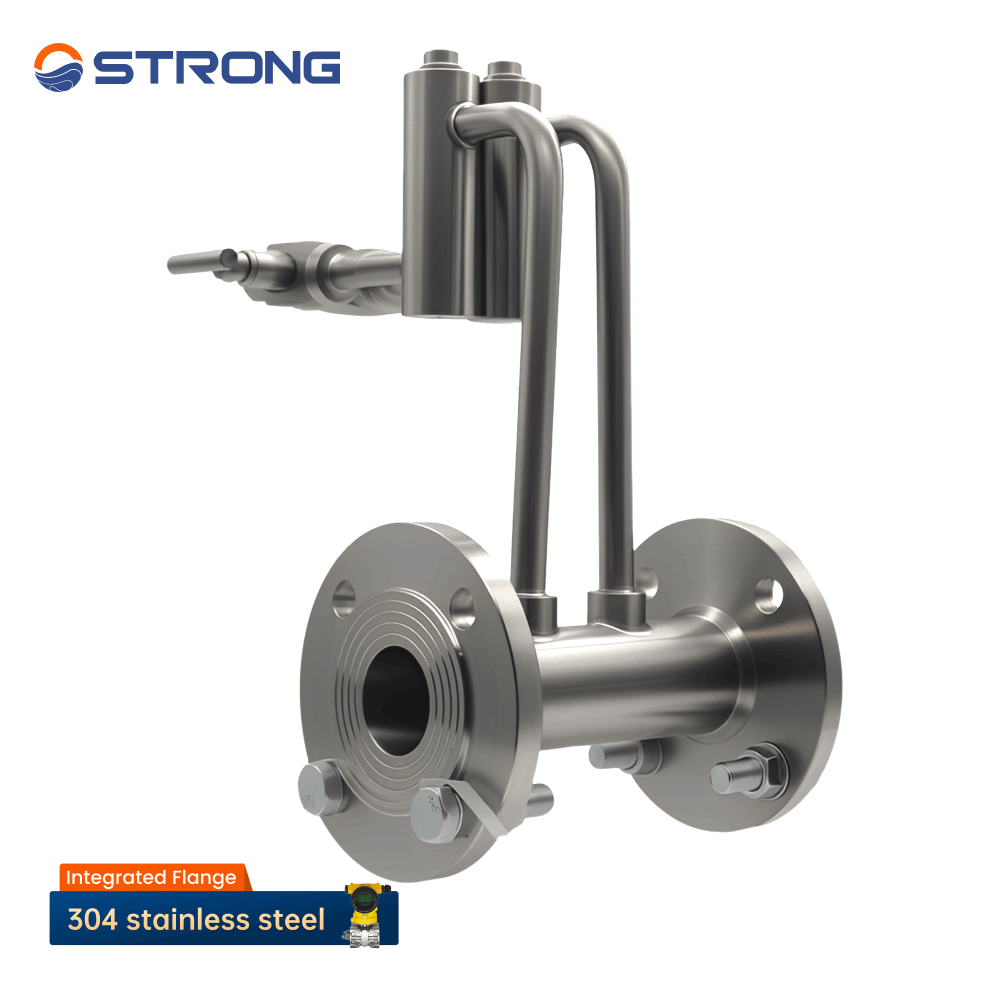

This high pressure resistant differential pressure flowmeter is made of 304 stainless steel as a whole, featuring excellent pressure resistance, corrosion resistance and high structural strength. It is specially designed for fluid flow measurement under high-pressure working conditions, with stable performance, high measurement accuracy and strong adaptability. It is widely used in petroleum, chemical, electric power and other industries, suitable for measuring various gases, liquids and steam.
Details

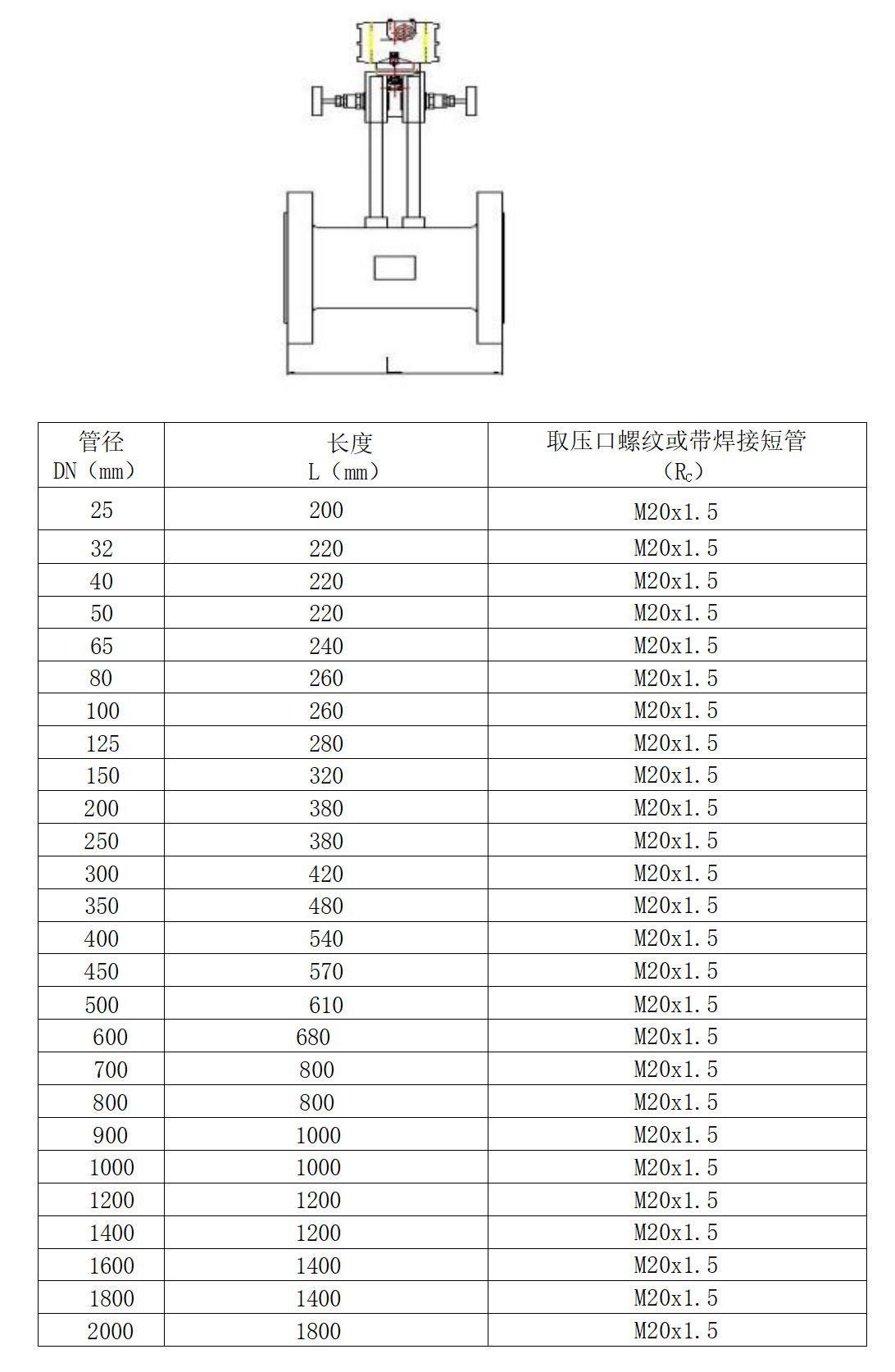

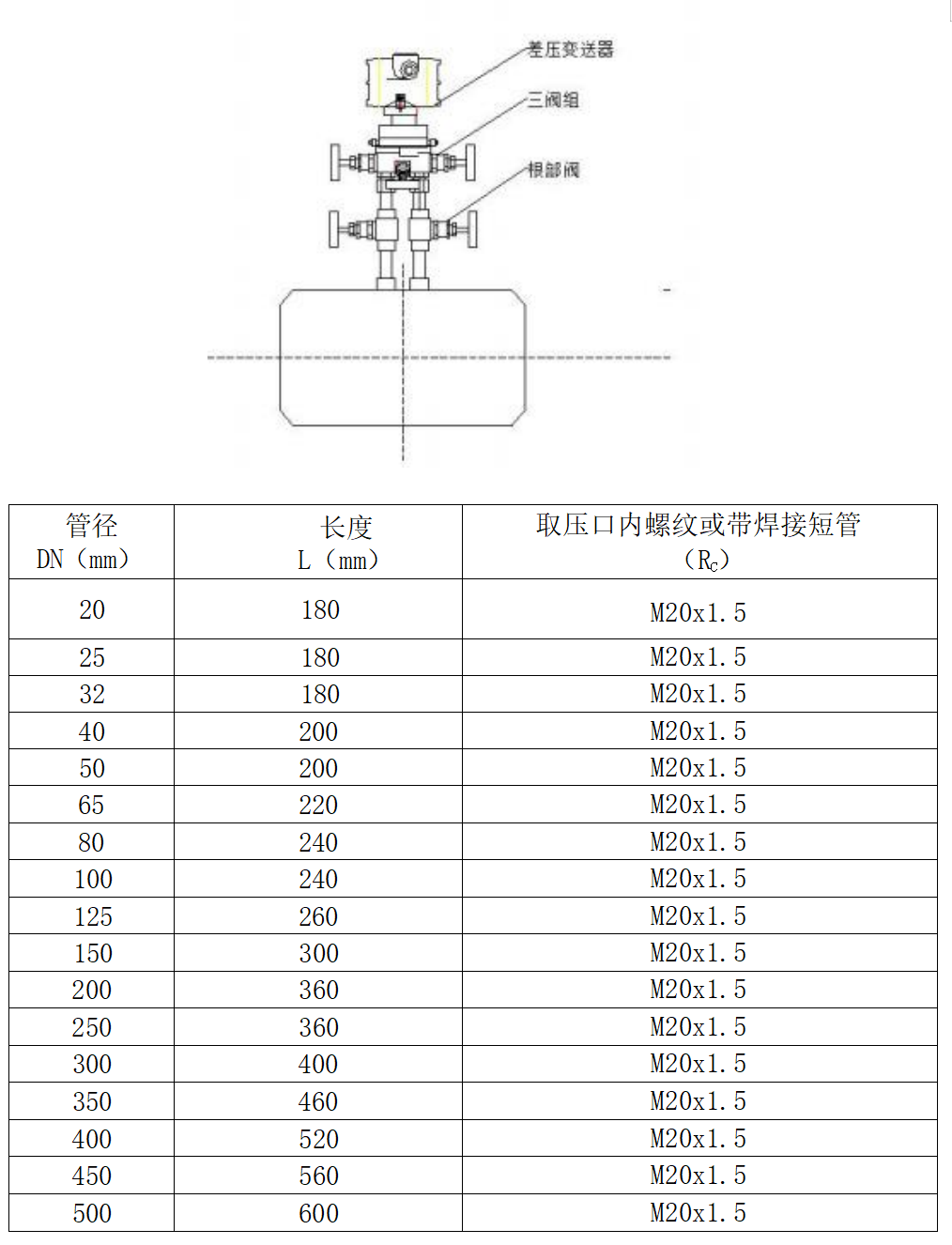

pipe diameter range:DN25～DN2000
accuracy class:±1%, ±0.5% (customized)
Straight pipe section:3D before the table, 1D after the table.
Range ratio:10:1, and it can be made wider under suitable working conditions.
Repeatability:0.1% to 0.15%.
Re value range:200 to 107.
Beta value range:0.25 to 0.9.
Upper temperature limit:550℃
Pressure upper limit:42MPa
